* slike so simbolične

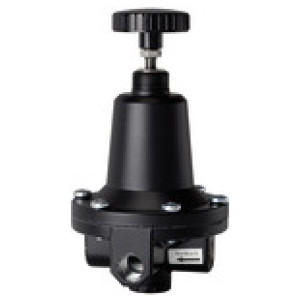

Natančni regulator zraka (s povratnim krmilnikom ), G 1/4
SKU: 101250RIE
EAN: 4047322278416
Precision control air regulator (feedback controller), without pressure gauge, G 1/4, Control range 0.2 - 7 bar
Diaphragm pressure regulator for feedback systems, specially designed for use in a pneumatically controlled closed control loop in combination with a pressure regulator with pneumatic remote control.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Natančni regulator zraka (s povratnim krmilnikom ), G 1/4
Navoj: G 1/4
Navoj manometra: For feedback pressure
Ohišje: Die-cast zinc
Max. notranja poraba zraka: 3 - 6 l/min
D [mm]: 123.4
B [mm]: 142.8
Navoj manometra: For feedback pressure
Ohišje: Die-cast zinc
Max. notranja poraba zraka: 3 - 6 l/min
D [mm]: 123.4
B [mm]: 142.8
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 101250RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Precision control air regulator (feedback controller), without pressure gauge, G 1/4, Control range 0.2 - 7 bar
Diaphragm pressure regulator for feedback systems, specially designed for use in a pneumatically controlled closed control loop in combination with a pressure regulator with pneumatic remote control.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc |
| Tesnilo | FPM |
| Membrane | FPM |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 3 - 6 l/min |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Min. krmilno območje [bar] | 0.2 |
| Max. krmilno območje [bar] | 7 |
| Navoj manometra | For feedback pressure |

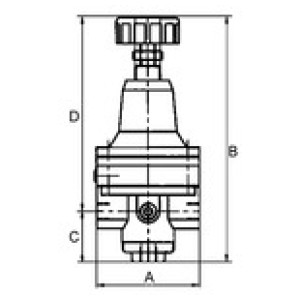

| A [mm] | 82.0 |
| B [mm] | 142.8 |
| C [mm] | 19.4 |
| D [mm] | 123.4 |
