Nav. Click-klak G 1/2 , zun. premera 10

SKU: 108717RIE
EAN: 4047322384964

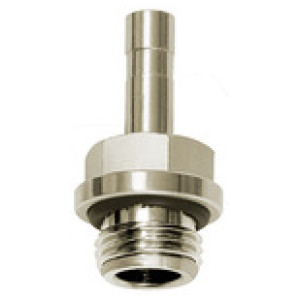

Thread plug nipple »click-clock«, G 1/2 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.

Only recommended for use in combination with quick-connect fittings of the "click-clock" series.

The suitability test for use with other series is the responsibility of the user.

Čas dobave 3 - 5 dni
4,27 €
Primerjaj z ostalimi
Šifra Navoj Za cevi O.D. [mm] a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
108713RIE G 3/8 8 17 35.4
Čas dobave 3 - 5 dni
2,44 € Natisni
108712RIE G 1/4 12 14 40.7
Čas dobave 3 - 5 dni
2,56 € Natisni
108719RIE G 1/2 14 22 48.2
Čas dobave 3 - 5 dni
4,01 € Natisni
108706RIE G 1/8 8 13 30.6
Čas dobave 3 - 5 dni
1,46 € Natisni
108714RIE G 3/8 10 17 37.1
Čas dobave 3 - 5 dni
3,48 € Natisni
108711RIE G 1/4 10 14 37.2
Čas dobave 3 - 5 dni
2,03 € Natisni
108716RIE G 3/8 14 17 46.2
Čas dobave 3 - 5 dni
3,54 € Natisni
108699RIE M5 3 5 16.8
Čas dobave 3 - 5 dni
1,52 € Natisni
108702RIE M5 6 9 25.7
Čas dobave 3 - 5 dni
3,04 € Natisni
108710RIE G 1/4 8 14 34.0
Čas dobave 3 - 5 dni
1,71 € Natisni
108701RIE M5 5 8 25.2
Čas dobave 3 - 5 dni
2,44 € Natisni
108705RIE G 1/8 6 13 29.4
Čas dobave 3 - 5 dni
1,40 € Natisni
108718RIE G 1/2 12 22 44.2
Čas dobave 3 - 5 dni
4,39 € Natisni
108704RIE G 1/8 5 13 28.9
Čas dobave 3 - 5 dni
2,44 € Natisni
108707RIE G 1/4 4 14 32.4
Čas dobave 3 - 5 dni
1,71 € Natisni
108715RIE G 3/8 12 17 42.2
Čas dobave 3 - 5 dni
3,96 € Natisni
108703RIE G 1/8 4 13 28.9
Čas dobave 3 - 5 dni
1,52 € Natisni
108708RIE G 1/4 5 14 32.4
Čas dobave 3 - 5 dni
3,37 € Natisni
108717RIE G 1/2 10 19 41.0
Čas dobave 3 - 5 dni
4,27 € Natisni
108709RIE G 1/4 6 14 32.9
Čas dobave 3 - 5 dni
1,65 € Natisni
108700RIE M5 4 8 25.2
Čas dobave 3 - 5 dni
1,52 € Natisni

Opis

Thread plug nipple »click-clock«, G 1/2 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.

Only recommended for use in combination with quick-connect fittings of the "click-clock" series.

The suitability test for use with other series is the responsibility of the user.

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Vpenjalni obroč Stainless steel
Navoj G 1/2
Za cevi O.D. [mm] 10

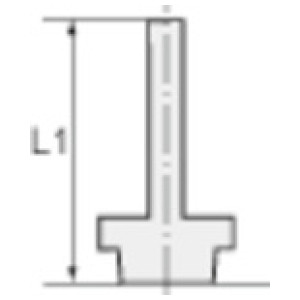

L1 [mm] 41.0
a/f [mm] 19
Material Nickel-plated brass
