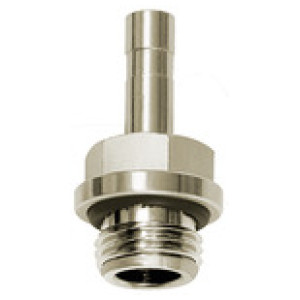

Nav. klik klak G 1/8 , zun. Ø 6 slika
Nav. klik klak G 1/8 , zun. Ø 6 slika

* slike so simbolične

Nav. klik klak G 1/8 , zun. Ø 6

SKU: 108705RIE
EAN: 4047322384841

Thread plug nipple »click-clock«, G 1/8 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.

Only recommended for use in combination with quick-connect fittings of the "click-clock" series.

The suitability test for use with other series is the responsibility of the user.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Thread plug nipple »click-clock«, G 1/8 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.

Only recommended for use in combination with quick-connect fittings of the "click-clock" series.

The suitability test for use with other series is the responsibility of the user.

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Vpenjalni obroč Stainless steel
Navoj G 1/8
Za cevi O.D. [mm] 6

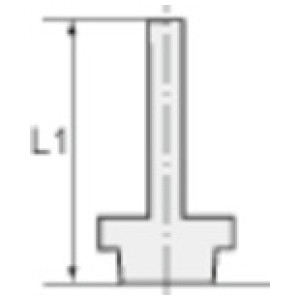

L1 [mm] 29.4
a/f [mm] 13
Material Nickel-plated brass
