* slike so simbolične

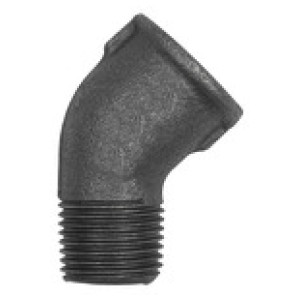

Nav. koleno 121, 45° Rp 3/4 N.N.,R 3/4 Z.N. črn.
SKU: 133665RIE
EAN: 4047322480666
Bracket 121, 45°, Rp 3/4 IT, R 3/4 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133668RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 15,45 € |  | |
| 133665RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 5,34 € | | |
| 133667RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 14,24 € | | |
| 133664RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | | |
| 133666RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 8,04 € | | |
| 133663RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 4,33 € | | |
| 133669RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 20,75 € | |
Opis
Bracket 121, 45°, Rp 3/4 IT, R 3/4 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp/R 3/4 |
| Standardni navoj | acc. ISO 7-1 |
