Nav. priklj. 330, N.N./N.N.Rp/Rp 3/8,č. kovanlit. ž.
SKU: 113161RIE
EAN: 4047322384421

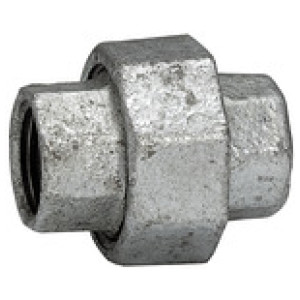

Fitting 330, flat sealing, IT/IT, Rp/Rp 3/8, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva.
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Povpraševanje
Navoj: Rp/Rp 3/8
Površina: Hot dip galvanised
Standardni navoj: acc. ISO 7-1
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 113164RIE | Rp/Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 113162RIE | Rp/Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113161RIE | Rp/Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113169RIE | Rp/Rp 3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113167RIE | Rp/Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113163RIE | Rp/Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113160RIE | Rp/Rp 1/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113168RIE | Rp/Rp 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113165RIE | Rp/Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113166RIE | Rp/Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Fitting 330, flat sealing, IT/IT, Rp/Rp 3/8, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva.
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp/Rp 3/8 |
| Standardni navoj | acc. ISO 7-1 |
