* slike so simbolične
Nav. priklj. 331, N.N./Z.N.Rp/R 1NBR tes.,č. kovanlit. ž.
SKU: 113174RIE
EAN: 4047322384056

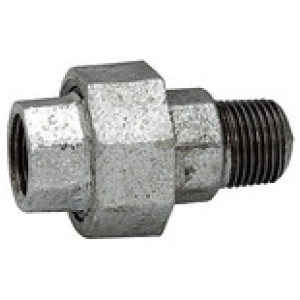

Fitting 331, flat sealing, IT/ET, Rp/R 1, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva.
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 113175RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 19,79 € |  | |
| 113177RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 37,81 € | | |
| 113171RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 12,04 € | | |
| 113170RIE | Rp/R 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 31,00 € | | |
| 113172RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 9,21 € | | |
| 113176RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 24,51 € | | |
| 113173RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 11,74 € | | |
| 113178RIE | Rp/R 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 86,32 € | | |
| 113174RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 14,51 € | |
Opis
Fitting 331, flat sealing, IT/ET, Rp/R 1, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva.
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp/R 1 |
| Standardni navoj | acc. ISO 7-1 |
