* slike so simbolične
Nav. priklj. 340, konični tesnjenjeRp 2 1/2Rp 2 1/2
SKU: 133828RIE
EAN: 4047322479936

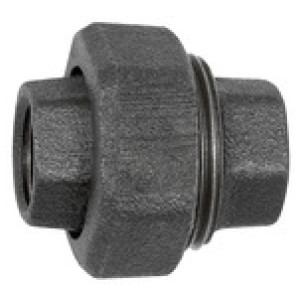

Fitting 340, conical sealing, Rp 2 1/2, Rp 2 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Obrestno financiranje
- 12,08 € x 6 mesecev
- 23,89 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133826RIE | Rp/Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 16,30 € |  | |
| 133822RIE | Rp/Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 9,21 € | | |
| 133827RIE | Rp/Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 20,09 € | | |
| 133825RIE | Rp/Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 10,92 € | | |
| 133824RIE | Rp/Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 9,46 € | | |
| 133823RIE | Rp/Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 7,43 € | | |
| 133828RIE | Rp/Rp 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 66,16 € | |
Opis
Fitting 340, conical sealing, Rp 2 1/2, Rp 2 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp/Rp 2 1/2 |
| Standardni navoj | acc. ISO 7-1 |
