Nav. priklj. 341, konični tesnjenje,R 2 1/2Rp 2 1/2
SKU: 133836RIE
EAN: 4047322480086

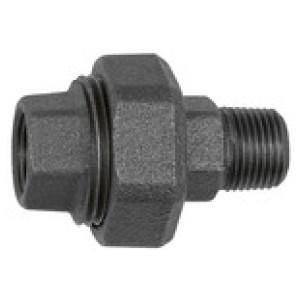

Fitting 341, conical sealing, R 2 1/2, Rp 2 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Obrestno financiranje
- 12,81 € x 6 mesecev
- 25,34 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133837RIE | Rp/R 3 | Čas dobave: Predvidoma 3 - 5 dni | 109,82 € |  | |
| 133834RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 21,09 € | | |
| 133830RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 8,04 € | | |
| 133831RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 10,10 € | | |
| 133829RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 8,32 € | | |
| 133832RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 11,87 € | | |
| 133835RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 32,96 € | | |
| 133833RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 16,35 € | | |
| 133836RIE | Rp/R 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 70,06 € | |
Opis
Fitting 341, conical sealing, R 2 1/2, Rp 2 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp/R 2 1/2 |
| Standardni navoj | acc. ISO 7-1 |
