Nav. priklj. 341, N.N./Z.N.Rp/R 2 1/2,č. kovanlit. ž.
SKU: 113197RIE
EAN: 4047322395533

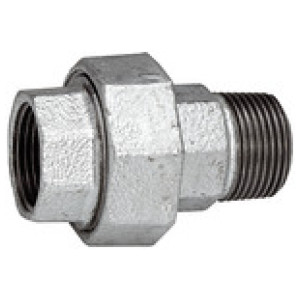

Fitting 341, conical sealing, IT/ET, Rp/R 2 1/2, Operating temp. -20°C to 300 °C, black malleable cast iron, Hot-dip galvanised
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust.
These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines.
Working minimal temperature = -20 °C: 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Obrestno financiranje
- 14,28 € x 6 mesecev
- 28,24 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 113195RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 23,44 € |  | |
| 113190RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 9,25 € | | |
| 113189RIE | Rp/R 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 16,26 € | | |
| 113191RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 8,91 € | | |
| 113196RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 36,62 € | | |
| 113192RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 11,22 € | | |
| 113198RIE | Rp/R 3 | Čas dobave: Predvidoma 3 - 5 dni | 122,04 € | | |
| 113194RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 18,13 € | | |
| 113193RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 13,19 € | | |
| 113197RIE | Rp/R 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 77,85 € | |
Opis
Fitting 341, conical sealing, IT/ET, Rp/R 2 1/2, Operating temp. -20°C to 300 °C, black malleable cast iron, Hot-dip galvanised
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust.
These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines.
Working minimal temperature = -20 °C: 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp/R 2 1/2 |
| Standardni navoj | acc. ISO 7-1 |
