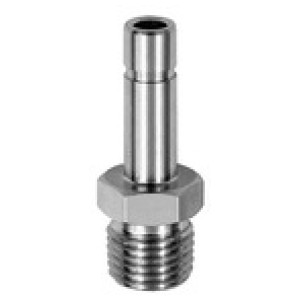

Navojni vtični priključek, R 1/2 o. vtični priklop Ø 10 mm
SKU: 135321RIE
EAN: 4047322495288
Thread plug nipple, R 1/2 o. , Plug connenction Ø 10 mm, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
Only recommended for use in combination with stainless steel quick connectors type 844 ff. Suitability testing for use with other series is the responsibility of the user.
Obrestno financiranje
- 10,35 € x 6 mesecev
- 20,49 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

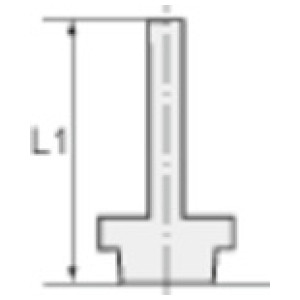

| Šifra | Navoj | Priključek [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135312 | R 1/4 | 4 | 14 | 40.0 | Čas dobave 3 - 5 dni | 39,37 € |  | |
| 135316 | R 1/4 | 12 | 14 | 44.5 | Čas dobave 3 - 5 dni | 45,90 € | | |
| 135320 | R 3/8 | 14 | 17 | 47.0 | Čas dobave 3 - 5 dni | 71,92 € | | |
| 135313 | R 1/4 | 6 | 14 | 42.0 | Čas dobave 3 - 5 dni | 29,23 € | | |
| 135322 | R 1/2 | 12 | 22 | 48.5 | Čas dobave 3 - 5 dni | 68,03 € | | |
| 135324 | R 1/2 | 16 | 22 | 50.5 | Čas dobave 3 - 5 dni | 81,14 € | | |
| 135319 | R 3/8 | 12 | 17 | 45.0 | Čas dobave 3 - 5 dni | 64,15 € | | |
| 135323 | R 1/2 | 14 | 22 | 50.5 | Čas dobave 3 - 5 dni | 74,83 € | | |
| 135317 | R 3/8 | 8 | 17 | 42.5 | Čas dobave 3 - 5 dni | 44,70 € | | |
| 135309 | R 1/8 | 4 | 11 | 36.5 | Čas dobave 3 - 5 dni | 25,66 € | | |
| 135310 | R 1/8 | 6 | 11 | 38.5 | Čas dobave 3 - 5 dni | 25,68 € | | |
| 135318 | R 3/8 | 10 | 17 | 42.5 | Čas dobave 3 - 5 dni | 46,15 € | | |
| 135315 | R 1/4 | 10 | 14 | 42.0 | Čas dobave 3 - 5 dni | 38,32 € | | |
| 135314 | R 1/4 | 8 | 14 | 42.0 | Čas dobave 3 - 5 dni | 32,07 € | | |
| 135311 | R 1/8 | 8 | 11 | 38.5 | Čas dobave 3 - 5 dni | 27,86 € | | |
| 135321 | R 1/2 | 10 | 22 | 46.5 | Čas dobave 3 - 5 dni | 57,82 € | |
Opis
Thread plug nipple, R 1/2 o. , Plug connenction Ø 10 mm, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
Only recommended for use in combination with stainless steel quick connectors type 844 ff. Suitability testing for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Navoj | R 1/2 |
| L1 [mm] | 46.5 |
| a/f [mm] | 22 |
| Priključek [mm] | 10 |
| Standardni navoj | ISO 7-1 |
| Material | Stainless steel 1.4404 |
