* slike so simbolične
Nepov. ventil, G1/4, zun. premer Ø10, PN max.250, galvan.jeklo
SKU: 159452RIE
EAN: 4047322640824

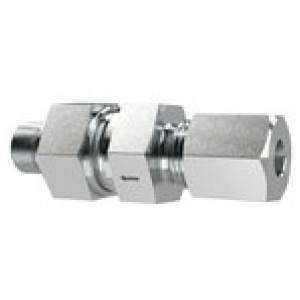

Non-return valve, G 1/4 o., bite-type tube to thread, Pipe exterior Ø 10, PN max. 250, a/f1 19, a/f2 22, a/f3 24, galvanised steel
Non-return valve, flow direction bite-type tube to thread, parallel male thread, light type
Čas dobave: Predvidoma 3 - 5 dni
29,66 €

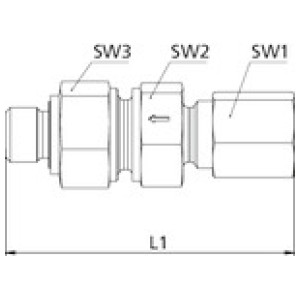

| Šifra | Navoj | O.D. cev [mm] | a/f 1 [mm] | a/f 2 [mm] | a/f 3 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 159453RIE | G 3/8 | 12 | 22 | 27 | 30 | 55.0 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 36,56 € |  | |
| 159450RIE | G 1/8 | 6 | 14 | 17 | 17 | 41.0 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 22,13 € | | |
| 159454RIE | G 1/2 | 15 | 27 | 27 | 32 | 57.5 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 45,73 € | | |
| 159455RIE | G 1/2 | 18 | 32 | 36 | 36 | 64.0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 62,95 € | | |
| 159457RIE | G 1 | 28 | 41 | 50 | 55 | 80.5 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 146,13 € | | |
| 159456RIE | G 3/4 | 22 | 36 | 41 | 46 | 72.0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 101,24 € | | |
| 159451RIE | G 1/4 | 8 | 17 | 19 | 19 | 43.0 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 24,44 € | | |
| 159452RIE | G 1/4 | 10 | 19 | 22 | 24 | 53.0 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 29,66 € | |
Opis
Non-return valve, G 1/4 o., bite-type tube to thread, Pipe exterior Ø 10, PN max. 250, a/f1 19, a/f2 22, a/f3 24, galvanised steel
Non-return valve, flow direction bite-type tube to thread, parallel male thread, light type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 1/4 |
| O.D. cev [mm] | 10 |
| L1 [mm] | 53.0 |
| a/f 1 [mm] | 19 |
| a/f 2 [mm] | 22 |
| a/f 3 [mm] | 24 |
| PN [bar] | 250 |
