* slike so simbolične
Nepov. ventil, G3/8, zun. premer Ø12, PN max.400, galvan.jeklo
SKU: 159461RIE
EAN: 4047322640916

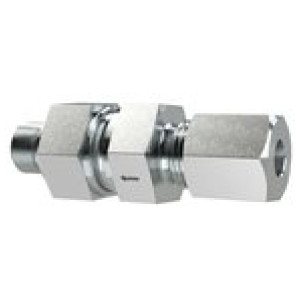

Non-return valve, G 3/8 o., bite-type tube to thread, Pipe exterior Ø 12, PN max. 400, a/f1 24, a/f2 24 a/f3 27, galvanised steel
Non-return valve, flow direction bite-type tube to thread, parallel male thread, heavy type
Čas dobave 3 - 5 dni
40,17 €

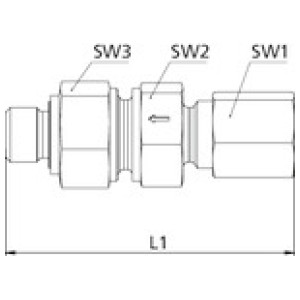

| Šifra | Navoj | O.D. cev [mm] | a/f 1 [mm] | a/f 2 [mm] | a/f 3 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 159458RIE | G 1/4 | 6 | 17 | 19 | 19 | 46.0 | 400 | Čas dobave 3 - 5 dni | 31,16 € |  | |
| 159462RIE | G 1/2 | 14 | 27 | 27 | 32 | 61.0 | 400 | Čas dobave 3 - 5 dni | 70,87 € | | |
| 159463RIE | G 1/2 | 16 | 30 | 32 | 36 | 64.0 | 400 | Čas dobave 3 - 5 dni | 63,87 € | | |
| 159464RIE | G 3/4 | 20 | 36 | 41 | 46 | 71.5 | 400 | Čas dobave 3 - 5 dni | 102,21 € | | |
| 159460RIE | G 3/8 | 10 | 22 | 22 | 24 | 54.0 | 400 | Čas dobave 3 - 5 dni | 38,06 € | | |
| 159461RIE | G 3/8 | 12 | 24 | 24 | 27 | 57.0 | 400 | Čas dobave 3 - 5 dni | 40,17 € | | |
| 159465RIE | G 1 | 25 | 46 | 46 | 50 | 78.5 | 250 | Čas dobave 3 - 5 dni | 123,13 € | | |
| 159459RIE | G 1/4 | 8 | 19 | 19 | 19 | 46.0 | 400 | Čas dobave 3 - 5 dni | 31,49 € | |
Opis
Non-return valve, G 3/8 o., bite-type tube to thread, Pipe exterior Ø 12, PN max. 400, a/f1 24, a/f2 24 a/f3 27, galvanised steel
Non-return valve, flow direction bite-type tube to thread, parallel male thread, heavy type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 3/8 |
| O.D. cev [mm] | 12 |
| L1 [mm] | 57.0 |
| a/f 1 [mm] | 24 |
| a/f 2 [mm] | 24 |
| a/f 3 [mm] | 27 |
| PN [bar] | 400 |
