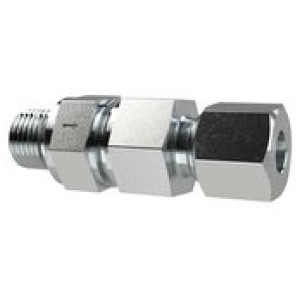

Nepov. ventil, G3/8, zun. premer Ø12, PN max.400, galvan.jeklo
SKU: 159477RIE
EAN: 4047322641074
Non-return valve, G 3/8 o., thread to bite-type tube, Pipe exterior Ø 12, PN max. 400, a/f1 24, a/f2 27, a/f3 24, galvanised steel
Non-return valve, flow direction thread to bite-type tube, parallel male thread, heavy type
Čas dobave: Predvidoma 3 - 5 dni
40,44 €

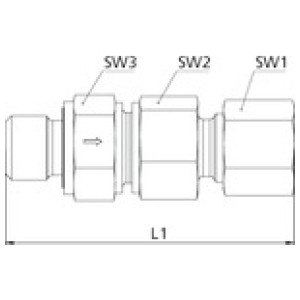

| Šifra | Navoj | O.D. cev [mm] | a/f 1 [mm] | a/f 3 [mm] | a/f 2 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 159481RIE | G 1 | 25 | 46 | 46 | 50 | 78.5 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 123,48 € |  | |
| 159480RIE | G 3/4 | 20 | 36 | 41 | 46 | 73.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 102,48 € | | |
| 159474RIE | G 1/4 | 6 | 17 | 19 | 19 | 46.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 31,06 € | | |
| 159475RIE | G 1/4 | 8 | 19 | 19 | 19 | 46.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 31,63 € | | |
| 159478RIE | G 1/2 | 14 | 27 | 27 | 32 | 62.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 68,50 € | | |
| 159476RIE | G 3/8 | 10 | 22 | 22 | 24 | 54.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 38,22 € | | |
| 159479RIE | G 1/2 | 16 | 30 | 32 | 36 | 66.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 64,12 € | | |
| 159477RIE | G 3/8 | 12 | 24 | 24 | 27 | 57.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 40,44 € | |
Opis
Non-return valve, G 3/8 o., thread to bite-type tube, Pipe exterior Ø 12, PN max. 400, a/f1 24, a/f2 27, a/f3 24, galvanised steel
Non-return valve, flow direction thread to bite-type tube, parallel male thread, heavy type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 3/8 |
| O.D. cev [mm] | 12 |
| L1 [mm] | 57.0 |
| a/f 1 [mm] | 24 |
| a/f 2 [mm] | 27 |
| a/f 3 [mm] | 24 |
| PN [bar] | 400 |
