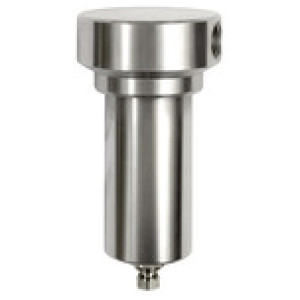

Nerjaveče jeklo filter, 1.4401, 25 µm, Velikost 1, G 1/4
SKU: 133549RIE
EAN: 4047322479288
Stainless steel filter, 1.4401, 25 µm, Size 1, G 1/4, Input pressure max. 30 bar, Medium temperature max. 80 °C
Stainless steel filters for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Čas dobave: Predvidoma 3 - 5 dni
370,49 €
ali od 12,59 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,59 € x 36 mesecev
- 18,09 € x 24 mesecev
- 34,62 € x 12 mesecev
- 67,73 € x 6 mesecev
- 133,95 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merjenje pretoka | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 133552RIE | At P1 = 6 bar and pressure drop Δp ≤ 1 bar | G 3/4 | 3 | 82.0 | 155.0 | 170.0 | 5440 | Čas dobave: Predvidoma 3 - 5 dni | 471,08 € |  | |
| 133551RIE | At P1 = 6 bar and pressure drop Δp ? 1 bar | G 1/2 | 3 | 82.0 | 155.0 | 170.0 | 3485 | Čas dobave: Predvidoma 3 - 5 dni | 471,08 € | | |
| 133550RIE | At P1 = 6 bar and pressure drop Δp ≤ 1 bar | G 3/8 | 1 | 64.0 | 152.0 | 169.0 | 2380 | Čas dobave: Predvidoma 3 - 5 dni | 370,49 € | | |
| 133553RIE | At P1 = 6 bar and pressure drop Δp ≤ 1 bar | G 1 | 4 | 120.0 | 160.0 | 190.0 | 9960 | Čas dobave: Predvidoma 3 - 5 dni | 1.317,33 € | | |
| 133549RIE | At P1 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 1 | 64.0 | 152.0 | 169.0 | 2155 | Čas dobave: Predvidoma 3 - 5 dni | 370,49 € | |
Opis
Stainless steel filter, 1.4401, 25 µm, Size 1, G 1/4, Input pressure max. 30 bar, Medium temperature max. 80 °C
Stainless steel filters for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 30 |
| Velikost | 1 |
| Ohišje | Stainless steel 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Element filtra | Stainless steel 1.4404 (AISI 316L) |
| Rang filtra [µm] | 25 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 60 |
| Odtok kondenzata | Locking screw |
| Pretok [l/min] | 2155 |

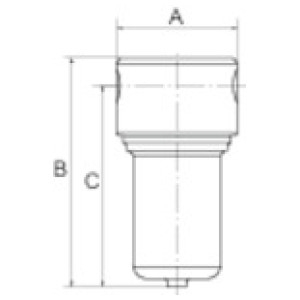

| A [mm] | 64.0 |
| B [mm] | 169.0 |
| C [mm] | 152.0 |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp ≤ 1 bar |
