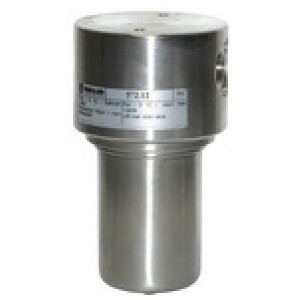

Nerjaveče jeklo filter, 1.4404, 50 µm, G 1/2
SKU: 101212RIE
EAN: 4047322101929
 Stainless steel filter, 1.4404, 50 µm, G 1/2, Input pressure max. 50 bar, Medium / ambient temperature max. 80 °C
Stainless steel filters containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
| Šifra | Navoj | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 129670RIE | G 1/2 | 109.0 | 123.0 | 140.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101212RIE | G 1/2 | 80.0 | 130.0 | 150.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101211RIE | G 1/4 | 64.0 | 125.0 | 140.0 | 900 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Stainless steel filter, 1.4404, 50 µm, G 1/2, Input pressure max. 50 bar, Medium / ambient temperature max. 80 °C
Stainless steel filters containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 50 |
| Ohišje | Stainless steel 1.4404 (AISI 316L) |
| Tesnilo | FKM |
| Rang filtra [µm] | 50 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Odtok kondenzata | Locking screw |
| Pretok [l/min] | 3400 |

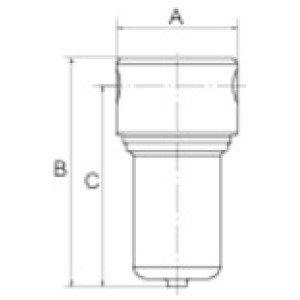

| A [mm] | 80.0 |
| B [mm] | 150.0 |
| C [mm] | 130.0 |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp ≤ 0.33 bar |
