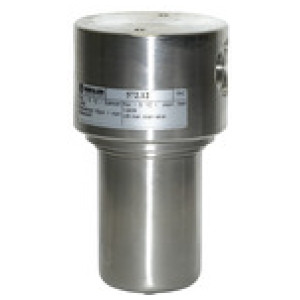

Nerjaveče jeklo filter, 1.4404, 50 µm, G 1/4
SKU: 101211RIE
EAN: 4047322101950
Stainless steel filter, 1.4404, 50 µm, G 1/4, Input pressure max. 50 bar, Medium / ambient temperature max. 80 °C
Stainless steel filters containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Obrestno financiranje
- 11,82 € x 48 mesecev
- 15,11 € x 36 mesecev
- 21,70 € x 24 mesecev
- 41,55 € x 12 mesecev
- 81,27 € x 6 mesecev
- 160,74 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 129670RIE | G 1/2 | 109.0 | 123.0 | 140.0 | 2500 | Ni na zalogi | ? | Povpraševanje |  |
| 101212RIE | G 1/2 | 80.0 | 130.0 | 150.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 622,44 € | | |
| 101211RIE | G 1/4 | 64.0 | 125.0 | 140.0 | 900 | Čas dobave: Predvidoma 3 - 5 dni | 443,98 € | |
Opis
Stainless steel filter, 1.4404, 50 µm, G 1/4, Input pressure max. 50 bar, Medium / ambient temperature max. 80 °C
Stainless steel filters containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 50 |
| Ohišje | Stainless steel 1.4404 (AISI 316L) |
| Tesnilo | FKM |
| Rang filtra [µm] | 50 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Odtok kondenzata | Locking screw |
| Pretok [l/min] | 900 |

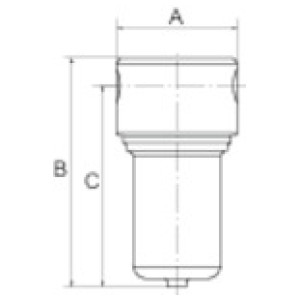

| A [mm] | 64.0 |
| B [mm] | 140.0 |
| C [mm] | 125.0 |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp ≤ 0.33 bar |
