* slike so simbolične

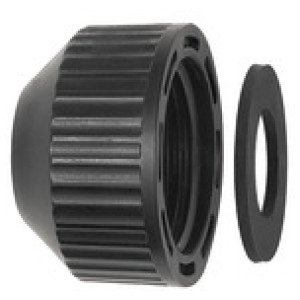

Nit-reducir, G 3/4, G 1/4
SKU: 136519RIE
EAN: 4047322506182
Thread-reducer, G 3/4, G 1/4, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Šifra | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|
136519RIE | Čas dobave: Predvidoma 3 - 5 dni | 4,12 € | |
Opis
Thread-reducer, G 3/4, G 1/4, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura v zraku [°C] | -20 |
Max. delovna temperatura v zraku [°C] | 65 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 70 |
Navoj 1 | G 3/4 |
Navoj 2 | G 1/4 |

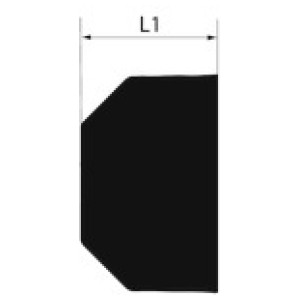

L1 [mm] | 21.0 |

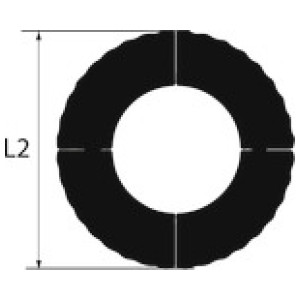

L2 [mm] | 35.0 |
Material | Acetal polymer (POM) |
