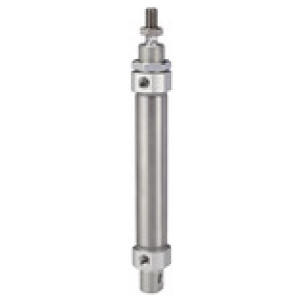

Okrogli cilinder »MI« delujoč v dveh smerehbat Ø 20hod 600G 1/8
SKU: 114857RIE
EAN: 4047322314497
Round cylinder »MI« ISO 6432, double-acting, Piston Ø 20, Stroke 600, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Povpraševanje
Batnica: Stainless steel 1.4301
Cushioning: non-cushioned
ET batnice: M8x1.25
Ffunkcija: double-acting
Gewinde Kolbenstange: male piston rod
Magnet: with magnet
Ovoj: Stainless steel 1.4301
Povezava: G 1/8
Serija: MI series
Standard: acc. to ISO 6432
Vrsta: CA type
| Šifra | Bat | ET batnice | Povezava | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 114771RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 114772RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 15 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114773RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114774RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114775RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 30 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114776RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114777RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 50 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114778RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 60 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114779RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 75 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114780RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 80 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Round cylinder »MI« ISO 6432, double-acting, Piston Ø 20, Stroke 600, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | MI series |
| Vrsta | CA type |
| Standard | acc. to ISO 6432 |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 1 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Bat Ø [mm] | 20 |
| Stroke [mm] | 600 |
| Povezava | G 1/8 |
| Batnica | Stainless steel 1.4301 |
| ET batnice | M8x1.25 |
| Batnica Ø [mm] | 8 |
| Bat | Aluminium |
