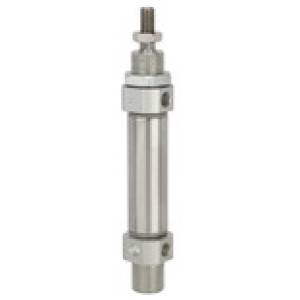

Okrogli cilinder »MI«delujoč v dveh smerehbatØ 40hod 125G 1/4
SKU: 114915RIE
EAN: 4047322315098

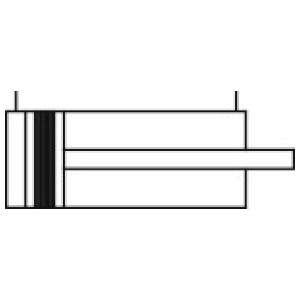

Round cylinder »MI«, double-acting, Magnet, Piston Ø 40, Stroke 125, G 1/4, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Obrestno financiranje
- 18,02 € x 6 mesecev
- 35,67 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | ET batnice | Povezava | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 114919RIE | M12x1.25 | G 1/4 | 16 | 40 | 200 | Čas dobave 3 - 5 dni | 109,18 € |  | |
| 114902RIE | M10x1.25 | G 1/8 | 12 | 32 | 500 | Čas dobave 3 - 5 dni | 136,25 € | | |
| 114908RIE | M12x1.25 | G 1/4 | 16 | 40 | 30 | Čas dobave 3 - 5 dni | 89,50 € | | |
| 114888RIE | M10x1.25 | G 1/8 | 12 | 32 | 60 | Čas dobave 3 - 5 dni | 78,50 € | | |
| 114913RIE | M12x1.25 | G 1/4 | 16 | 40 | 80 | Čas dobave 3 - 5 dni | 95,19 € | | |
| 114918RIE | M12x1.25 | G 1/4 | 16 | 40 | 175 | Čas dobave 3 - 5 dni | 107,10 € | | |
| 114911RIE | M12x1.25 | G 1/4 | 16 | 40 | 60 | Čas dobave 3 - 5 dni | 93,77 € | | |
| 114886RIE | M10x1.25 | G 1/8 | 12 | 32 | 40 | Čas dobave 3 - 5 dni | 75,91 € | | |
| 114899RIE | M10x1.25 | G 1/8 | 12 | 32 | 350 | Čas dobave 3 - 5 dni | 115,02 € | | |
| 114920RIE | M12x1.25 | G 1/4 | 16 | 40 | 250 | Čas dobave 3 - 5 dni | 116,69 € | | |
| 114910RIE | M12x1.25 | G 1/4 | 16 | 40 | 50 | Čas dobave 3 - 5 dni | 91,96 € | | |
| 114926RIE | M12x1.25 | G 1/4 | 16 | 40 | 600 | Čas dobave 3 - 5 dni | 175,87 € | | |
| 114889RIE | M10x1.25 | G 1/8 | 12 | 32 | 75 | Čas dobave 3 - 5 dni | 78,50 € | | |
| 114924RIE | M12x1.25 | G 1/4 | 16 | 40 | 450 | Čas dobave 3 - 5 dni | 146,10 € | | |
| 114914RIE | M12x1.25 | G 1/4 | 16 | 40 | 100 | Čas dobave 3 - 5 dni | 97,41 € | | |
| 114900RIE | M10x1.25 | G 1/8 | 12 | 32 | 400 | Čas dobave 3 - 5 dni | 120,71 € | | |
| 114905RIE | M12x1.25 | G 1/4 | 16 | 40 | 15 | Čas dobave 3 - 5 dni | 86,51 € | | |
| 114901RIE | M10x1.25 | G 1/8 | 12 | 32 | 450 | Čas dobave 3 - 5 dni | 127,70 € | | |
| 114923RIE | M12x1.25 | G 1/4 | 16 | 40 | 400 | Čas dobave 3 - 5 dni | 141,05 € | | |
| 114909RIE | M12x1.25 | G 1/4 | 16 | 40 | 40 | Čas dobave 3 - 5 dni | 89,50 € | | |
| 114895RIE | M10x1.25 | G 1/8 | 12 | 32 | 175 | Čas dobave 3 - 5 dni | 95,70 € | | |
| 114887RIE | M10x1.25 | G 1/8 | 12 | 32 | 50 | Čas dobave 3 - 5 dni | 77,46 € | | |
| 114907RIE | M12x1.25 | G 1/4 | 16 | 40 | 25 | Čas dobave 3 - 5 dni | 88,73 € | | |
| 114896RIE | M10x1.25 | G 1/8 | 12 | 32 | 200 | Čas dobave 3 - 5 dni | 97,93 € | | |
| 114885RIE | M10x1.25 | G 1/8 | 12 | 32 | 30 | Čas dobave 3 - 5 dni | 75,91 € | | |
| 114897RIE | M10x1.25 | G 1/8 | 12 | 32 | 250 | Čas dobave 3 - 5 dni | 103,22 € | | |
| 114890RIE | M10x1.25 | G 1/8 | 12 | 32 | 80 | Čas dobave 3 - 5 dni | 79,54 € | | |
| 114912RIE | M12x1.25 | G 1/4 | 16 | 40 | 75 | Čas dobave 3 - 5 dni | 93,77 € | | |
| 114891RIE | M10x1.25 | G 1/8 | 12 | 32 | 100 | Čas dobave 3 - 5 dni | 83,80 € | | |
| 114916RIE | M12x1.25 | G 1/4 | 16 | 40 | 150 | Čas dobave 3 - 5 dni | 102,82 € | | |
| 114882RIE | M10x1.25 | G 1/8 | 12 | 32 | 15 | Čas dobave 3 - 5 dni | 73,58 € | | |
| 114892RIE | M10x1.25 | G 1/8 | 12 | 32 | 125 | Čas dobave 3 - 5 dni | 90,27 € | | |
| 114898RIE | M10x1.25 | G 1/8 | 12 | 32 | 300 | Čas dobave 3 - 5 dni | 108,02 € | | |
| 114883RIE | M10x1.25 | G 1/8 | 12 | 32 | 20 | Čas dobave 3 - 5 dni | 74,35 € | | |
| 114881RIE | M10x1.25 | G 1/8 | 12 | 32 | 10 | Čas dobave 3 - 5 dni | 73,18 € | | |
| 114893RIE | M10x1.25 | G 1/8 | 12 | 32 | 150 | Čas dobave 3 - 5 dni | 91,70 € | | |
| 114904RIE | M12x1.25 | G 1/4 | 16 | 40 | 10 | Čas dobave 3 - 5 dni | 86,51 € | | |
| 114884RIE | M10x1.25 | G 1/8 | 12 | 32 | 25 | Čas dobave 3 - 5 dni | 75,25 € | | |
| 114921RIE | M12x1.25 | G 1/4 | 16 | 40 | 300 | Čas dobave 3 - 5 dni | 124,21 € | | |
| 114906RIE | M12x1.25 | G 1/4 | 16 | 40 | 20 | Čas dobave 3 - 5 dni | 86,51 € | | |
| 114903RIE | M10x1.25 | G 1/8 | 12 | 32 | 600 | Čas dobave 3 - 5 dni | 153,35 € | | |
| 114925RIE | M12x1.25 | G 1/4 | 16 | 40 | 500 | Čas dobave 3 - 5 dni | 153,86 € | | |
| 114917RIE | M12x1.25 | G 1/4 | 16 | 40 | 160 | Čas dobave 3 - 5 dni | 105,05 € | | |
| 114922RIE | M12x1.25 | G 1/4 | 16 | 40 | 350 | Čas dobave 3 - 5 dni | 131,22 € | | |
| 114894RIE | M10x1.25 | G 1/8 | 12 | 32 | 160 | Čas dobave 3 - 5 dni | 93,65 € | | |
| 114915RIE | M12x1.25 | G 1/4 | 16 | 40 | 125 | Čas dobave 3 - 5 dni | 100,65 € | |
Opis
Round cylinder »MI«, double-acting, Magnet, Piston Ø 40, Stroke 125, G 1/4, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | MI series |
| Vrsta | CM type |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 1 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Bat Ø [mm] | 40 |
| Stroke [mm] | 125 |
| Povezava | G 1/4 |
| Batnica | Stainless steel 1.4301 |
| ET batnice | M12x1.25 |
| Batnica Ø [mm] | 16 |
| Bat | Aluminium |
