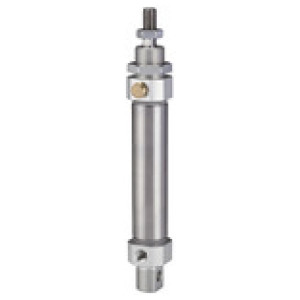

Okrogli cilinder »MSI« enosmerni, bat Ø 25, hod 75, G 1/8
SKU: 114980RIE
EAN: 4047322317030
Round cylinder »MSI«, single-acting, Magnet, Piston Ø 25, Stroke 75, G 1/8, Working pressure 2 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Povpraševanje
Batnica: Stainless steel 1.4301
Cushioning: non-cushioned
ET batnice: M10x1.25
Ffunkcija: single-acting
Gewinde Kolbenstange: male piston rod
Magnet: with magnet
Ovoj: Stainless steel 1.4301
Povezava: G 1/8
Serija: MSI series
Starting position: pressureless in the retracted position
Vrsta: CA type
| Šifra | Bat | ET batnice | Povezava | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 114927RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 114928RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 15 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114929RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114930RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114931RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 30 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114932RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114933RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 8 | 50 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114934RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114935RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 15 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114936RIE | Stainless steel 1.4305 | M4x0.7 | M5x0.8 | 4 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Round cylinder »MSI«, single-acting, Magnet, Piston Ø 25, Stroke 75, G 1/8, Working pressure 2 - 10 bar, Temp. -20 °C to 70 °C
These round cylinders are available in the following versions:
- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432
- »MI« Series, double-acting, Ø 32 to 40
- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
»CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Serija | MSI series |
| Vrsta | CA type |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 2 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Stainless steel 1.4301 |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 75 |
| Povezava | G 1/8 |
| Batnica | Stainless steel 1.4301 |
| ET batnice | M10x1.25 |
| Batnica Ø [mm] | 10 |
| Bat | Aluminium |
