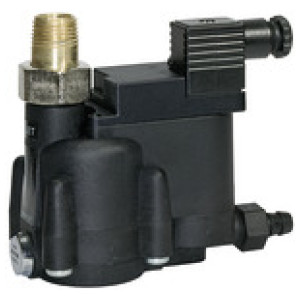

Parni lovilnik »drukodrain plus« z nivojskim nadz.230 V/50 Hz slika

* slike so simbolične

Parni lovilnik »drukodrain plus« z nivojskim nadz.230 V/50 Hz

SKU: 101626RIE
EAN: 4047322205177

Condensate drain line »drukodrain plus«, Level controlled, Voltage 230 V / 50 Hz, Operating pressure 0.2 - 16 bar

Compact and exceptionally reliable, level-controlled drain for compressed air condensate.

The condensate enters the integrated collecting tank, in which the level is continuously monitored.

When the condensate reaches the maximum mark, the pilot valve opens and the condensate is forced into the

discharge line by the system pressure. The valve closes again when the level reaches the minimum mark.

Benefits of »drukodrain plus«:

- No pressure loss

- Diaphragm protected by integrated cup filter

- Test button for manual outlet

- Auto-reset function

- Suitable for all condensate types

Čas dobave 3 - 5 dni
256,42 €
ali od 12,51 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 12,51 € x 24 mesecev
  • 23,95 € x 12 mesecev
  • 46,86 € x 6 mesecev
  • 92,68 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
101626RIE
Čas dobave 3 - 5 dni
256,42 € Natisni

Opis

Condensate drain line »drukodrain plus«, Level controlled, Voltage 230 V / 50 Hz, Operating pressure 0.2 - 16 bar

Compact and exceptionally reliable, level-controlled drain for compressed air condensate.

The condensate enters the integrated collecting tank, in which the level is continuously monitored.

When the condensate reaches the maximum mark, the pilot valve opens and the condensate is forced into the

discharge line by the system pressure. The valve closes again when the level reaches the minimum mark.

Benefits of »drukodrain plus«:

- No pressure loss

- Diaphragm protected by integrated cup filter

- Test button for manual outlet

- Auto-reset function

- Suitable for all condensate types

Tehnični podatki in specifikacije

Napetost 230 V AC / 50 Hz
Min. obratovalni tlak [bar] 0.2
Max. obratovalni tlak [bar] 16
IP zaščita IP 65
Kapaciteta kompresorja [m³/min] 10
Zmogljivost sušenja [m³/min] 20
Zmogljivost filtra [m³/min] 100
