* slike so simbolične

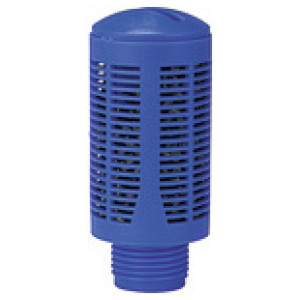

Plastičen Glušnik s polnilom iz granulata, G 1/2
SKU: 113379RIE
EAN: 4047322273503
Plastic silencer with granulate filling, G 1/2, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
With granular filling, self-cleaning.
The spherical shape of the granules allows very fine dust to escape in addition to air.
Higher blow-off rate.
Opis
Plastic silencer with granulate filling, G 1/2, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
With granular filling, self-cleaning.
The spherical shape of the granules allows very fine dust to escape in addition to air.
Higher blow-off rate.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 12 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 70 |
Raven hrupa pri 6 bar [dB] | 90 |
Raven hrupa pri 4 bar [dB] | 83 |
Navoj | G 1/2 |

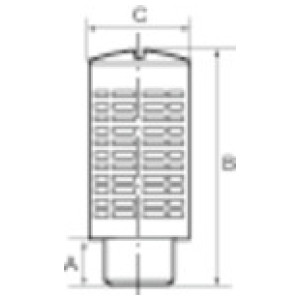

A [mm] | 11.0 |
B [mm] | 57.0 |
C [mm] | 24.5 |
