Plastičen Glušnik s polnilom iz granulata, G 1/4
SKU: 113377RIE
EAN: 4047322273480

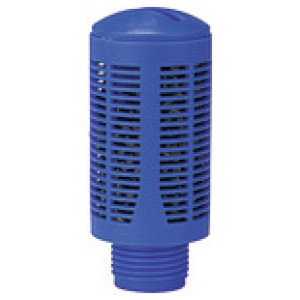

Plastic silencer with granulate filling, G 1/4, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
With granular filling, self-cleaning.
The spherical shape of the granules allows very fine dust to escape in addition to air.
Higher blow-off rate.
Čas dobave: Predvidoma 3 - 5 dni
2,70 €

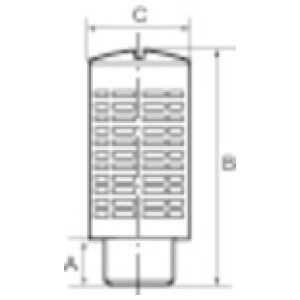

| Šifra | Navoj | A [mm] | C [mm] | B [mm] | Raven hrupa pri 4 bar [dB] | Raven hrupa pri 6 bar [dB] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 113376RIE | G 1/8 | 6.0 | 15.0 | 33.0 | 84 | 87 | Čas dobave: Predvidoma 3 - 5 dni | 2,17 € |  | |
| 113378RIE | G 3/8 | 11.0 | 24.5 | 57.0 | 83 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 113381RIE | G 1 | 16.0 | 48.0 | 110.5 | 85 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 113380RIE | G 3/4 | 17.5 | 48.0 | 112.0 | 85 | 91 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 113379RIE | G 1/2 | 11.0 | 24.5 | 57.0 | 83 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 113377RIE | G 1/4 | 8.0 | 19.0 | 43.0 | 81 | 84 | Čas dobave: Predvidoma 3 - 5 dni | 2,70 € | |
Opis
Plastic silencer with granulate filling, G 1/4, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C
With granular filling, self-cleaning.
The spherical shape of the granules allows very fine dust to escape in addition to air.
Higher blow-off rate.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 12 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Raven hrupa pri 6 bar [dB] | 84 |
| Raven hrupa pri 4 bar [dB] | 81 |
| Navoj | G 1/4 |
| A [mm] | 8.0 |
| B [mm] | 43.0 |
| C [mm] | 19.0 |
