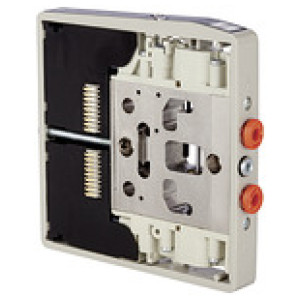

Ploščati ventil HDM priključek 4 mm 5/3-potni, sredina zaprta
SKU: 106680RIE
EAN: 7071030210
Valve disc for valve terminal HDM, Connection 4 mm, 5/3-way, Centre closed, Temp. -10 °C to 60 °C
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Povpraševanje
Material: aluminium
Poskusno: Max. 16 (e.g. 16 spring return valves)
Ročno upravljanje: latching
Vhodna moč: 0.6 W per pilot
Ffunkcija: 5/3-way, centre closed
| Šifra | Ffunkcija | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 106679RIE | 5/2-way, bistable (double solenoid valve) | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106676RIE | 3/2-way, NC, monostable and 3/2-way, NO, monostable | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106677RIE | 5/2-way, monostable | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106678RIE | 5/2-way, monostable (only uses one PIN, Source 2 signals) | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106680RIE | 5/3-way, centre closed | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106674RIE | 2x 3/2-way, NC, monostable or 5/3-way, centre vented | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106675RIE | 2x 3/2-way, NO, monostable or 5/3-way, centre aerated | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Valve disc for valve terminal HDM, Connection 4 mm, 5/3-way, Centre closed, Temp. -10 °C to 60 °C
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Vhodna moč | 0.6 W per pilot |
| Ročno upravljanje | latching |
| Poskusno | Max. 16 (e.g. 16 spring return valves) |
| IP zaščita | IP 65 |
| Ffunkcija | 5/3-way, centre closed |
| Pretok [Nl/min] | 200 |
| Material | aluminium |
