Pnevmatski izpustni Kont. ventil, z navojem - , G 1/8 8
SKU: 106822RIE
EAN: 9065710

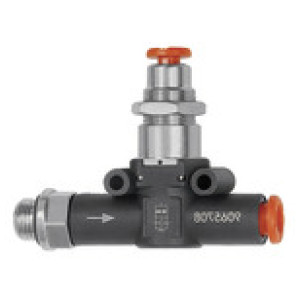

Pneumatically releasable check valve »lineonline«, Thread - hose, G 1/8, for hose Ø 8 mm, Operating pressure max. 10 bar
For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.
Čas dobave: Predvidoma 3 - 5 dni
37,21 €

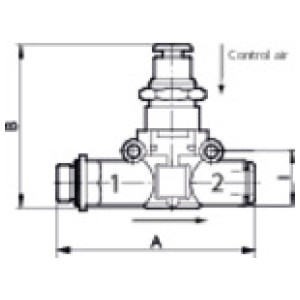

| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 106821RIE | G 1/8 | 6 | 14.6 | 43.2 | 58.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 36,34 € |  | |
| 106824RIE | G 1/4 | 8 | 18.7 | 49.7 | 70.6 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 37,89 € | | |
| 106823RIE | G 1/4 | 6 | 14.6 | 43.2 | 61.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 36,97 € | | |
| 106825RIE | G 3/8 | 8 | 18.7 | 49.7 | 72.2 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 39,28 € | | |
| 106822RIE | G 1/8 | 8 | 18.7 | 49.7 | 66.2 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 37,21 € | |
Opis
Pneumatically releasable check valve »lineonline«, Thread - hose, G 1/8, for hose Ø 8 mm, Operating pressure max. 10 bar
For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

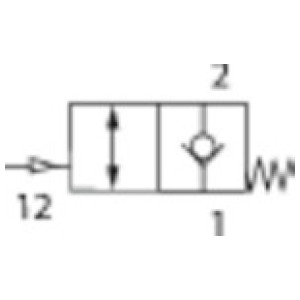

| Pnevmatski simboli | On housing |
| Nadzor zraka | 4 mm |
| Navoj | G 1/8 |
| Za cevi Ø [mm] | 8 |
| A [mm] | 66.2 |
| B [mm] | 49.7 |
| I [mm] | 18.7 |
| Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 790 |
