Pnevmatski zapotni ventil, G 1/4, G 1/4 i., G 1/8
SKU: 107058RIE
EAN: 4047322107020

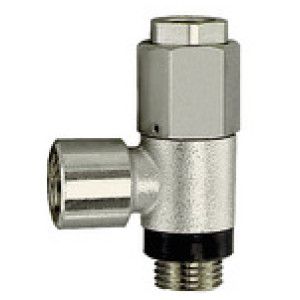

Pneumatically piloted stop valve, G 1/4, G 1/4 i., G 1/8, Working pressure 0.3-10 bar, Temperature -10°C to 60 °C
For stopping and positioning the cylinder movement:

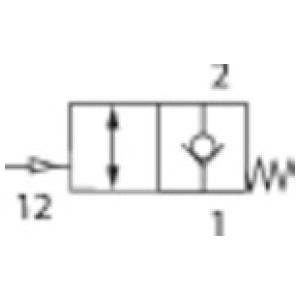

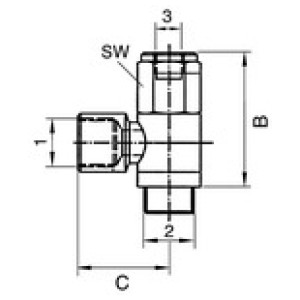

If a control signal is present at port 3 (see drawing), air can flow to and from the cylinder. If no control signal is present, the cylinder exhaust air is shut off by the unidirectional valve. The cylinder is stopped. Releasable unidirectional valves are screwed directly onto the cylinder instead of the normal pipe connections.
Note: Pilot pressure is depending on operating pressure.
Obrestno financiranje
- 12,26 € x 6 mesecev
- 24,26 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Port 1 | Port 2 | Port 3 | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 107058RIE | G 1/4 | G 1/4 | G 1/8 | 25.4 | 43.0 | Čas dobave 3 - 5 dni | 67,33 € |  | |
| 107060RIE | G 1/2 | G 1/2 | G 1/8 | 32.0 | 52.0 | Čas dobave 3 - 5 dni | 127,60 € | | |
| 107059RIE | G 3/8 | G 3/8 | G 1/8 | 31.6 | 46.0 | Čas dobave 3 - 5 dni | 82,59 € | | |
| 107057RIE | G 1/8 | G 1/8 | M5 | 21.5 | 38.0 | Čas dobave 3 - 5 dni | 58,05 € | |
Opis
Pneumatically piloted stop valve, G 1/4, G 1/4 i., G 1/8, Working pressure 0.3-10 bar, Temperature -10°C to 60 °C
For stopping and positioning the cylinder movement:
If a control signal is present at port 3 (see drawing), air can flow to and from the cylinder. If no control signal is present, the cylinder exhaust air is shut off by the unidirectional valve. The cylinder is stopped. Releasable unidirectional valves are screwed directly onto the cylinder instead of the normal pipe connections.
Note: Pilot pressure is depending on operating pressure.
Tehnični podatki in specifikacije
| Min. vodeni tlak [bar] | 0.5 |
| Min. obratovalni tlak [bar] | 0.3 |
| Max. obratovalni tlak [bar] | 10 |
| Max. vodeni tlak [bar] | 2.5 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Material | Nickel-plated brass |
| Vgradni položaj | Any, ring piece must be pos. before tightening the valve |
| Tesnilo | NBR |
| Port 1 | G 1/4 |
| Port 2 | G 1/4 |
| Port 3 | G 1/8 |
| B [mm] | 43.0 |
| C [mm] | 25.4 |
