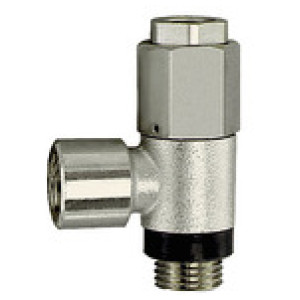

Pnevmatski zapotni ventil, G 1/8, G 1/8 i., M5

SKU: 107057RIE
EAN: 4047322107037

Pneumatically piloted stop valve, G 1/8, G 1/8 i., M5, Working pressure 0.3 - 10 bar, Temperature -10°C to 60°C

For stopping and positioning the cylinder movement:

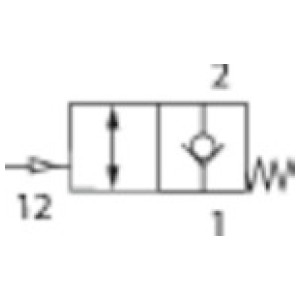

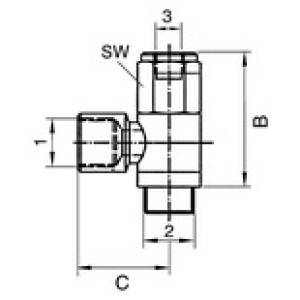

If a control signal is present at port 3 (see drawing), air can flow to and from the cylinder. If no control signal is present, the cylinder exhaust air is shut off by the unidirectional valve. The cylinder is stopped. Releasable unidirectional valves are screwed directly onto the cylinder instead of the normal pipe connections.

Note: Pilot pressure is depending on operating pressure.

Čas dobave: Predvidoma 3 - 5 dni
58,05 €
ali od 10,62 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,62 € x 6 mesecev
  • 21,00 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Port 1 Port 2 Port 3 C [mm] B [mm] Zaloga Cena Nakup Natisni
107058RIE G 1/4 G 1/4 G 1/8 25.4 43.0
Čas dobave: Predvidoma 3 - 5 dni
67,33 € Natisni
107060RIE G 1/2 G 1/2 G 1/8 32.0 52.0
Čas dobave: Predvidoma 3 - 5 dni
127,60 € Natisni
107059RIE G 3/8 G 3/8 G 1/8 31.6 46.0
Čas dobave: Predvidoma 3 - 5 dni
82,59 € Natisni
107057RIE G 1/8 G 1/8 M5 21.5 38.0
Čas dobave: Predvidoma 3 - 5 dni
58,05 € Natisni

Opis

Pneumatically piloted stop valve, G 1/8, G 1/8 i., M5, Working pressure 0.3 - 10 bar, Temperature -10°C to 60°C

For stopping and positioning the cylinder movement:

If a control signal is present at port 3 (see drawing), air can flow to and from the cylinder. If no control signal is present, the cylinder exhaust air is shut off by the unidirectional valve. The cylinder is stopped. Releasable unidirectional valves are screwed directly onto the cylinder instead of the normal pipe connections.

Note: Pilot pressure is depending on operating pressure.

Tehnični podatki in specifikacije

Min. vodeni tlak [bar] 0.5
Min. obratovalni tlak [bar] 0.3
Max. obratovalni tlak [bar] 10
Max. vodeni tlak [bar] 2.5
Min. temperatura medija [°C] -10
Max. temperatura medija [°C] 60
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 60
Material Nickel-plated brass
Vgradni položaj Any, ring piece must be pos. before tightening the valve
Tesnilo NBR
Port 1 G 1/8
Port 2 G 1/8
Port 3 M5
B [mm] 38.0
C [mm] 21.5
