* slike so simbolične

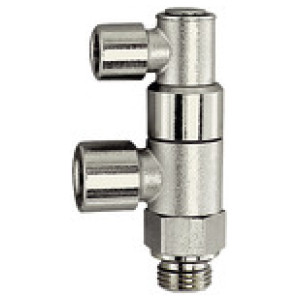

Pnevmatsko gnani zaporni ventil, G 1/8, G 1/8 i., G 1/8 i.
SKU: 107061RIE
EAN: 4047322111300
Stopper valve pneumatically actuated, G1/8, G1/8 i., G1/8 i., Working pressure max. 10 bar, Medium / ambient temp. -10°C to 70°C

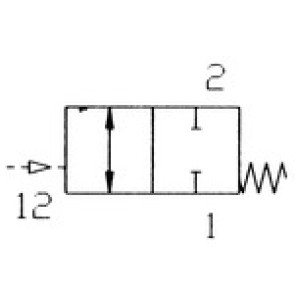

For high-speed positioning and stop functions as well as emergency switching (e.g. emergency stop). If a control signal is present at port 3, air can flow to and from the cylinder. If no control signal is present, the air flow to and from the cylinder is shut off, causing the cylinder to stop in the required position. Stop valves are screwed directly onto the cylinder instead of the normal pipe connections.
Note: Pilot pressure is depending on operating pressure.
Obrestno financiranje
- 14,46 € x 6 mesecev
- 28,60 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

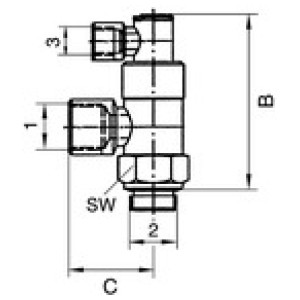

| Šifra | Port 1 | Port 2 | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107063RIE | G 3/8 | G 3/8 | 31.0 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 116,79 € |  | |
| 107064RIE | G 1/2 | G 1/2 | 40.0 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 177,77 € | | |
| 107062RIE | G 1/4 | G 1/4 | 25.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 89,13 € | | |
| 107061RIE | G 1/8 | G 1/8 | 21.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 78,67 € | |
Opis
Stopper valve pneumatically actuated, G1/8, G1/8 i., G1/8 i., Working pressure max. 10 bar, Medium / ambient temp. -10°C to 70°C
For high-speed positioning and stop functions as well as emergency switching (e.g. emergency stop). If a control signal is present at port 3, air can flow to and from the cylinder. If no control signal is present, the air flow to and from the cylinder is shut off, causing the cylinder to stop in the required position. Stop valves are screwed directly onto the cylinder instead of the normal pipe connections.
Note: Pilot pressure is depending on operating pressure.
Tehnični podatki in specifikacije
| Min. vodeni tlak [bar] | 1 |
| Max. obratovalni tlak [bar] | 10 |
| Max. vodeni tlak [bar] | 5 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 70 |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 70 |
| Material | Nickel-plated brass |
| Vgradni položaj | Any, ring piece can be rotated 360° after tighten. the valve |
| Tesnilo | NBR |
| Port 1 | G 1/8 |
| Port 2 | G 1/8 |
| Port 3 | G 1/8 |
| B [mm] | 52.0 |
| C [mm] | 21.0 |
