* slike so simbolične

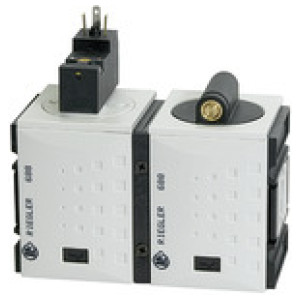

Polnilna enota»FUTURA«Elektr. vodena 24V AC, Vel.2, G 1/2
SKU: 156623RIE
EAN: 4047322628143
Filling unit »FUTURA«, electr. actuated with solenoid 24 V AC, 50 Hz, Size 2, G 1/2, Exhaust G 1/2, Input pressure 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

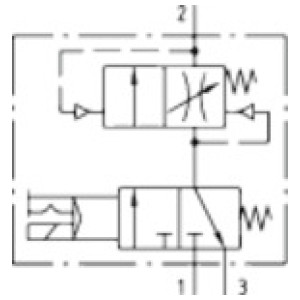

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Povpraševanje
IP zaščita: IP 65
Izpušni zrak: G 1/2
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/2
Ohišje: PA66 GF60
Priključni navoj: Material: Die-cast zinc
Serija: FUTURA
Srednje: Compressed air, neutral gases
Vhodna moč: 2.5 Watt with DC voltage
A [mm]: 126.0
B [mm]: 150.3
| Šifra | Izpušni zrak | Navoj | Velikost | D [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 156621RIE | G 1/4 | G 3/8 | 1 | 33.0 | 84.8 | 104.0 | 117.8 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 156625RIE | G 1/2 | G 1 | 4 | 67.0 | 110.7 | 170.0 | 177.7 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 156624RIE | G 1/2 | G 3/4 | 4 | 67.0 | 110.7 | 170.0 | 177.7 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 156620RIE | G 1/4 | G 1/4 | 1 | 33.0 | 84.8 | 104.0 | 117.8 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 156622RIE | G 1/2 | G 3/8 | 2 | 56.5 | 93.8 | 126.0 | 150.3 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 156623RIE | G 1/2 | G 1/2 | 2 | 56.5 | 93.8 | 126.0 | 150.3 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Filling unit »FUTURA«, electr. actuated with solenoid 24 V AC, 50 Hz, Size 2, G 1/2, Exhaust G 1/2, Input pressure 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.
The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 2 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Vhodna moč | 2.5 Watt with DC voltage |
| Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
| Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
| Pretok [l/min] | 3400 |
| Izpušni zrak | G 1/2 |
| A [mm] | 126.0 |
| B [mm] | 150.3 |
| C [mm] | 93.8 |
| D [mm] | 56.5 |
| Serija | FUTURA |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Srednje | Compressed air, neutral gases |
| Delovni cikel [%] | 100 |
| IP zaščita | IP 65 |
| Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
