Polnilna enota »FUTURA-mali«, Elektr. vodena, 230 V AC, G 1/4
SKU: 142527RIE
EAN: 4047322557528
Filling unit »FUTURA-mini«, electr. actuated with solenoid 230 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input pr. 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

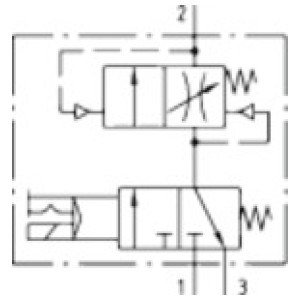

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Povpraševanje
IP zaščita: IP 65
Izpušni zrak: G 1/4
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: PA66 GF60
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
Vhodna moč: 2.5 Watt with DC voltage
B [mm]: 138.0
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 142527RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Filling unit »FUTURA-mini«, electr. actuated with solenoid 230 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input pr. 2.5 - 10 bar
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.
The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Vhodna moč | 2.5 Watt with DC voltage |
| Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
| Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
| Pretok [l/min] | 1400 |
| Izpušni zrak | G 1/4 |

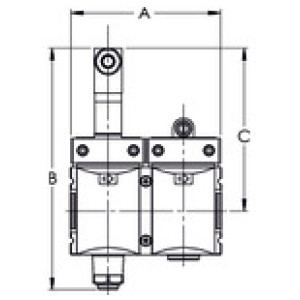

| A [mm] | 86.0 |
| B [mm] | 138.0 |
| C [mm] | 93.0 |
| Serija | FUTURA-mini |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Srednje | Compressed air, neutral gases |
| Delovni cikel [%] | 100 |
| IP zaščita | IP 65 |
| Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
