Polnilna enota »FUTURA-mali«, Elektr. vodena, 24 V AC/50 Hz, G1/4

SKU: 142530RIE
EAN: 4047322557559

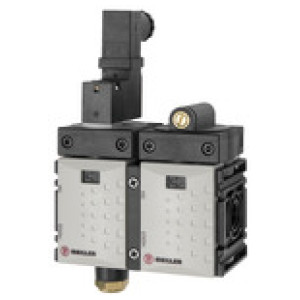

Filling unit »FUTURA-mini«, electr. actuated with solenoid 24 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input pr. 2.5 - 10 bar

The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

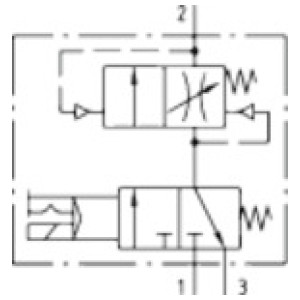

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).

It is connected and disconnected by means of the 3/2-way valve.

The filling time can be altered by turning the adjusting screw.

Čas dobave: Predvidoma 3 - 5 dni
189,72 €
ali od 17,78 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 17,78 € x 12 mesecev
  • 34,78 € x 6 mesecev
  • 68,79 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
142530RIE
Čas dobave: Predvidoma 3 - 5 dni
189,72 € Natisni

Opis

Filling unit »FUTURA-mini«, electr. actuated with solenoid 24 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input pr. 2.5 - 10 bar

The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).

It is connected and disconnected by means of the 3/2-way valve.

The filling time can be altered by turning the adjusting screw.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 10
Min. vhodni tlak [bar] 2.5
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Plastic
Vhodna moč 2.5 Watt with DC voltage
Dvižna moč pri 50 Hz AC napetosti [VA] 2.2
Zaklepna moč pri 50 Hz AC napetosti [VA] 1.6
Pretok [l/min] 1400
Izpušni zrak G 1/4

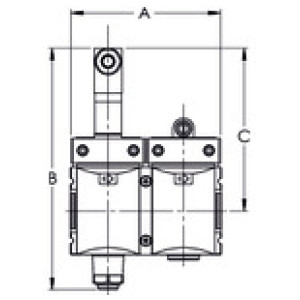

A [mm] 86.0
B [mm] 138.0
C [mm] 93.0
Serija FUTURA-mini
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 1 bar
Srednje Compressed air, neutral gases
Delovni cikel [%] 100
IP zaščita IP 65
Električni priključek Socket coupling EN 175301-803, form C, poles 2+PE
