* slike so simbolične

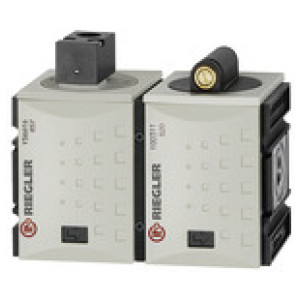

Polnilna enota »FUTURA«, pnevmatsko vodena, Velikost 4, G 3/4
SKU: 156636RIE
EAN: 4047322628273
Filling unit »FUTURA«, pneumatically actuated, Size 4, G 3/4, Exhaust G 1/2, Input pressure 2.5 - 16 bar, Temp. -10 °C to 50 °C
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.

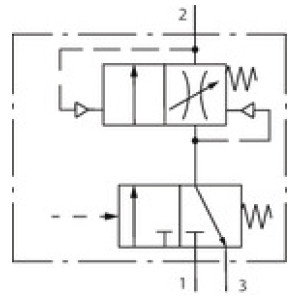

The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Obrestno financiranje
- 12,78 € x 48 mesecev
- 16,33 € x 36 mesecev
- 23,46 € x 24 mesecev
- 44,92 € x 12 mesecev
- 87,86 € x 6 mesecev
- 173,77 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Izpušni zrak | Navoj | Velikost | D [mm] | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 156635RIE | G 1/2 | G 1/2 | 2 | 56.5 | 61.1 | 117.6 | 126.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 226,36 € |  | |
| 156633RIE | G 1/4 | G 3/8 | 1 | 33.0 | 52.1 | 85.1 | 104.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 185,96 € | | |
| 156637RIE | G 1/2 | G 1 | 4 | 67.0 | 78.0 | 145.0 | 170.0 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 479,67 € | | |
| 156632RIE | G 1/4 | G 1/4 | 1 | 33.0 | 52.1 | 85.1 | 104.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 185,96 € | | |
| 156634RIE | G 1/2 | G 3/8 | 2 | 56.5 | 61.1 | 117.6 | 126.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 226,36 € | | |
| 156636RIE | G 1/2 | G 3/4 | 4 | 67.0 | 78.0 | 145.0 | 170.0 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 479,67 € | |
Opis
Filling unit »FUTURA«, pneumatically actuated, Size 4, G 3/4, Exhaust G 1/2, Input pressure 2.5 - 16 bar, Temp. -10 °C to 50 °C
The filling unit protects devices connected downstream by ensuring a gradual build-up of pressure.
The unit consists of a 3/2-way valve including silencer and a filling valve (start-up valve).
It is connected and disconnected by means of the 3/2-way valve.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Pretok [l/min] | 9000 |
| Izpušni zrak | G 1/2 |

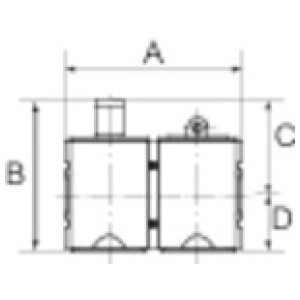

| A [mm] | 170.0 |
| B [mm] | 145.0 |
| C [mm] | 78.0 |
| D [mm] | 67.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
