Polnilni ventil (Vklopni ventil) »FUTURA-mali«, Velikost 0, G 1/4
SKU: 142525RIE
EAN: 4047322557504
Filling valve (start-up valve) »FUTURA-mini«, Size 0, G 1/4, Input pressure 2.5 - 12 bar, Temperature -10 °C to 50 °C

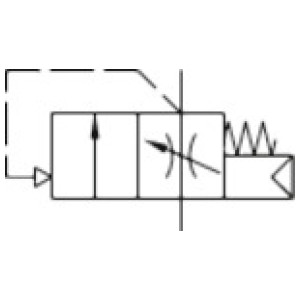

Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
These valves prevent a sudden build-up of pressure accompanied by dangerous, jerky cylinder movements.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Obrestno financiranje
- 11,90 € x 6 mesecev
- 23,54 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 142525RIE | Čas dobave: Predvidoma 3 - 5 dni | 64,56 € |  |
Opis
Filling valve (start-up valve) »FUTURA-mini«, Size 0, G 1/4, Input pressure 2.5 - 12 bar, Temperature -10 °C to 50 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
These valves prevent a sudden build-up of pressure accompanied by dangerous, jerky cylinder movements.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Pretok [l/min] | 2000 |

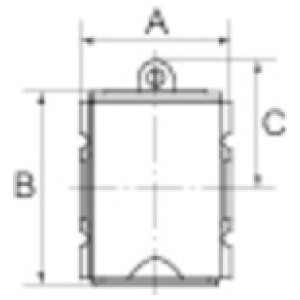

| A [mm] | 43.0 |
| B [mm] | 81.0 |
| C [mm] | 53.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
