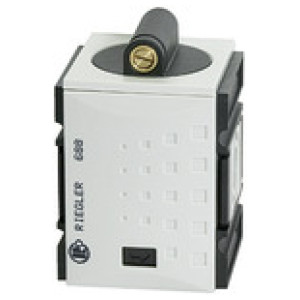

Polnilni ventil (Vklopni ventil) »FUTURA«, Velikost 4, G 3/4
SKU: 100315RIE
EAN: 4047322246170
Filling valve (start-up valve) »FUTURA«, Size 4, G 3/4, Input pressure 2.5 - 16 bar, Temperature -10 °C to 50 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
These valves prevent a sudden build-up of pressure accompanied by dangerous, jerky cylinder movements.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Obrestno financiranje
- 10,07 € x 24 mesecev
- 19,28 € x 12 mesecev
- 37,71 € x 6 mesecev
- 74,58 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

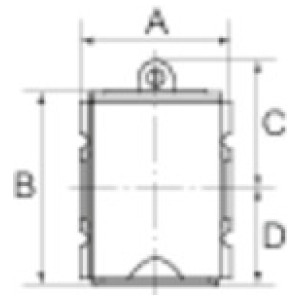

| Šifra | Navoj | Velikost | D [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100311RIE | G 1/4 | 1 | 33.0 | 45.0 | 52.0 | 78.0 | 2000 | Čas dobave 3 - 5 dni | 63,12 € |  | |
| 100313RIE | G 3/8 | 2 | 58.0 | 53.5 | 63.0 | 111.5 | 4500 | Čas dobave 3 - 5 dni | 78,53 € | | |
| 100312RIE | G 3/8 | 1 | 33.0 | 45.0 | 52.0 | 78.0 | 2000 | Čas dobave 3 - 5 dni | 63,12 € | | |
| 100315RIE | G 3/4 | 4 | 54.0 | 58.0 | 85.0 | 112.0 | 10000 | Čas dobave 3 - 5 dni | 205,63 € | | |
| 100316RIE | G 1 | 4 | 54.0 | 58.0 | 85.0 | 112.0 | 10000 | Čas dobave 3 - 5 dni | 205,63 € | | |
| 100314RIE | G 1/2 | 2 | 58.0 | 53.5 | 63.0 | 111.5 | 4500 | Čas dobave 3 - 5 dni | 78,53 € | |
Opis
Filling valve (start-up valve) »FUTURA«, Size 4, G 3/4, Input pressure 2.5 - 16 bar, Temperature -10 °C to 50 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
These valves prevent a sudden build-up of pressure accompanied by dangerous, jerky cylinder movements.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Pretok [l/min] | 10000 |
| A [mm] | 85.0 |
| B [mm] | 112.0 |
| C [mm] | 58.0 |
| D [mm] | 54.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
