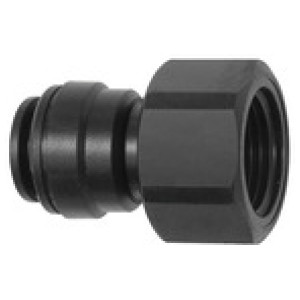

POM priključni vijak, G 3/4 za cev zunanja Ø 8 mm
SKU: 136518RIE
EAN: 4047322506175
Screw-on connection POM, G 3/4, for hose exterior Ø 8 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Šifra | Navoj | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
136517RIE | G 3/8 | 8 | 30.8 | Čas dobave: Predvidoma 3 - 5 dni | 5,47 € | ||
136516RIE | G 1/4 | 8 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,10 € | ||
136514RIE | G 1/8 | 6 | 31.3 | Čas dobave: Predvidoma 3 - 5 dni | 4,06 € | ||
136513RIE | G 1/8 | 4 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,79 € | ||
136515RIE | G 1/4 | 6 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,87 € | ||
136518RIE | G 3/4 | 8 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,00 € |
Opis
Screw-on connection POM, G 3/4, for hose exterior Ø 8 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura v zraku [°C] | -20 |
Max. delovna temperatura v zraku [°C] | 65 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 70 |
Navoj | G 3/4 |
Za cevi O.D. [mm] | 8 |

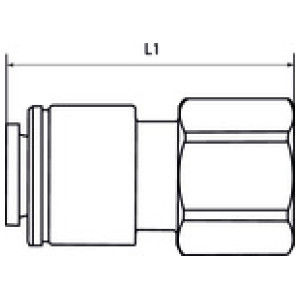

L1 [mm] | 36.0 |
Material | Acetal polymer (POM) |
