Popolnoma avto. ventil za odz.vklj. z adapt. G 1/8 i. x M14x1 slika
Popolnoma avto. ventil za odz.vklj. z adapt. G 1/8 i. x M14x1 slika

* slike so simbolične

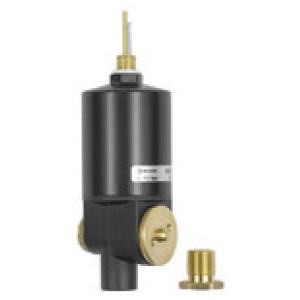

Popolnoma avto. ventil za odz.vklj. z adapt. G 1/8 i. x M14x1

SKU: 100677RIE
EAN: 4047322337434

Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1, Operating pressure 4 - 12 bar, Operating temp. 0 °C to 90 °C

For all size G 1/4 or larger filters, filter regulators, service units and combined units.

Not suitable for our »Mini« Series nor for the »multifix« Series.

Easier to mount than the standard manual drain valve.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1, Operating pressure 4 - 12 bar, Operating temp. 0 °C to 90 °C

For all size G 1/4 or larger filters, filter regulators, service units and combined units.

Not suitable for our »Mini« Series nor for the »multifix« Series.

Easier to mount than the standard manual drain valve.

Tehnični podatki in specifikacije

Ohišje Plastic (PA)
Min. obratovalni tlak [bar] 4
Max. obratovalni tlak [bar] 12
Max. delovna temperatura [°C] 90
DN 4
Povezava z zalogovnikom G 1/8 male
Odtočni navoj G 1/4 female
Vgradni položaj Bowl mounted – vertical ± 10%
Pokrov motorja Brass
Opis Fully-automatic drain valve

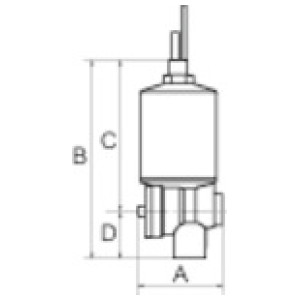

A [mm] 46.5
B [mm] 109.0
C [mm] 83.0
D [mm] 26.0
Srednje Condensate (emulsion)
