Poseben filter »Stinard«PC zbir.0.01 µmVel.1,G 1/4
SKU: 100988RIE
EAN: 4047322359092

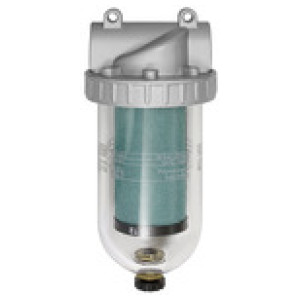

Special filter »Standard« with PC container, 0.01 µm, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

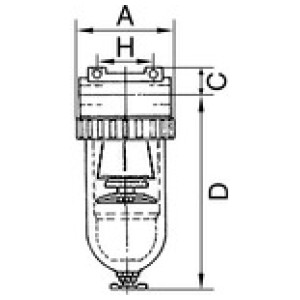

| Šifra | Navoj | Odtok kondenzata | Velikost | DN | C [mm] | H [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100988RIE | G 1/4 | Semi-automatic | 1 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 380 | Čas dobave 3 - 5 dni | 70,87 € |  | |
| 100989RIE | G 3/8 | Semi-automatic | 1 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 380 | Čas dobave 3 - 5 dni | 92,51 € | | |
| 100990RIE | G 3/8 | Semi-automatic | 2 | 10 | 16.0 | 50.0 | 70.0 | 145.7 | 720 | Čas dobave 3 - 5 dni | 100,58 € | | |
| 100993RIE | G 1 | Manuel | 4 | 25 | 36.0 | 120.0 | 133.0 | 206.0 | 7000 | Čas dobave 3 - 5 dni | 368,23 € | | |
| 100991RIE | G 1/2 | Semi-automatic | 3 | 15 | 18.0 | 50.0 | 79.0 | 168.4 | 1250 | Čas dobave 3 - 5 dni | 138,02 € | | |
| 100992RIE | G 3/4 | Manuel | 4 | 20 | 36.0 | 134.0 | 133.0 | 206.0 | 7000 | Čas dobave 3 - 5 dni | 339,50 € | |
Opis
Special filter »Standard« with PC container, 0.01 µm, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc, painted silver |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 380 |
| Odtok kondenzata | Semi-automatic |
| DN | 6 |
| Rang filtra [µm] | 0.01 |
| Učinkovitost [%] | 99.999 |
| Posoda | Polycarbonate container |
| A [mm] | 48.0 |
| C [mm] | 14.0 |
| D [mm] | 131.6 |
| H [mm] | 38.0 |
| Serija | Standard |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
