Poseben filter »Stinard« Zašč. kletka0.01 µmVel.2,G 3/8

SKU: 100996RIE
EAN: 4047322111775

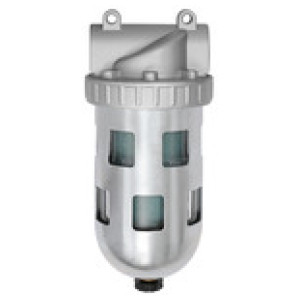

Special filter »Standard« with polycarbonate container and protective cage, 0.01 µm, Size 2, G 3/8, Input pressure max. 16 bar

For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.

Čas dobave 3 - 5 dni
125,77 €
ali od 11,79 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,79 € x 12 mesecev
  • 23,06 € x 6 mesecev
  • 45,62 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

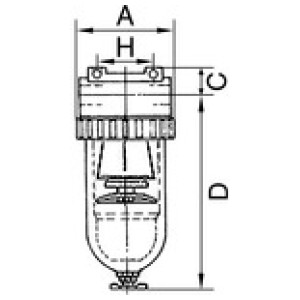

Šifra Navoj Odtok kondenzata Velikost DN C [mm] H [mm] A [mm] D [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
100997RIE G 1/2 Semi-automatic 3 15 18.0 50.0 79.0 168.4 1250
Čas dobave 3 - 5 dni
172,94 € Natisni
100995RIE G 3/8 Semi-automatic 1 6 14.0 38.0 48.0 131.6 380
Čas dobave 3 - 5 dni
108,90 € Natisni
100999RIE G 1 Manuel 4 25 36.0 120.0 133.0 206.0 7000
Čas dobave 3 - 5 dni
406,99 € Natisni
100998RIE G 3/4 Manuel 4 20 36.0 134.0 133.0 206.0 7000
Čas dobave 3 - 5 dni
? Povpraševanje Natisni
100994RIE G 1/4 Semi-automatic 1 6 14.0 38.0 48.0 131.6 380
Čas dobave 3 - 5 dni
93,27 € Natisni
100996RIE G 3/8 Semi-automatic 2 10 16.0 50.0 70.0 145.7 720
Čas dobave 3 - 5 dni
125,77 € Natisni

Opis

Special filter »Standard« with polycarbonate container and protective cage, 0.01 µm, Size 2, G 3/8, Input pressure max. 16 bar

For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 16
Velikost 2
Ohišje Die-cast zinc, painted silver
Max. temperatura medija [°C] 50
Max. sobna temperatura [°C] 50
Pretok [l/min] 720
Odtok kondenzata Semi-automatic
DN 10
Rang filtra [µm] 0.01
Učinkovitost [%] 99.999
Posoda Polycarbonate container with protective cage
A [mm] 70.0
C [mm] 16.0
D [mm] 145.7
H [mm] 50.0
Serija Standard
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 1 bar
