Poseben filter »Stinard« Zašč. kletka0.01 µmVel.4,G 3/4
SKU: 100998RIE
EAN: 4047322113434

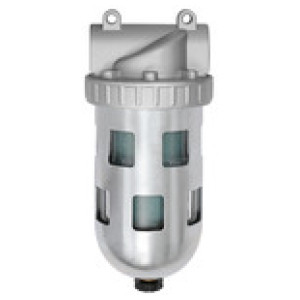

Special filter »Standard« with polycarbonate container and protective cage, 0.01 µm, Size 4, G 3/4, Input pressure max. 16 bar
For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.
Povpraševanje
Navoj: G 3/4
Odtok kondenzata: Manuel
Ohišje: Die-cast zinc, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
Učinkovitost [%]: 99.999
A [mm]: 133.0
H [mm]: 134.0
D [mm]: 206.0
| Šifra | Navoj | Odtok kondenzata | Velikost | DN | C [mm] | H [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100994RIE | G 1/4 | Semi-automatic | 1 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100995RIE | G 3/8 | Semi-automatic | 1 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100996RIE | G 3/8 | Semi-automatic | 2 | 10 | 16.0 | 50.0 | 70.0 | 145.7 | 720 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100997RIE | G 1/2 | Semi-automatic | 3 | 15 | 18.0 | 50.0 | 79.0 | 168.4 | 1250 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100998RIE | G 3/4 | Manuel | 4 | 20 | 36.0 | 134.0 | 133.0 | 206.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100999RIE | G 1 | Manuel | 4 | 25 | 36.0 | 120.0 | 133.0 | 206.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Special filter »Standard« with polycarbonate container and protective cage, 0.01 µm, Size 4, G 3/4, Input pressure max. 16 bar
For all applications with particularly strict compressed air purity requirements. The separating efficiency of these filters permits very fine oil vapour particles and micro-fine suspended particles to be filtered. A standard filter should always be connected upstream to trap coarse impurities and protect the micro-filter inserts.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Ohišje | Die-cast zinc, painted silver |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 7000 |
| Odtok kondenzata | Manuel |
| DN | 20 |
| Rang filtra [µm] | 0.01 |
| Učinkovitost [%] | 99.999 |
| Posoda | Polycarbonate container with protective cage |

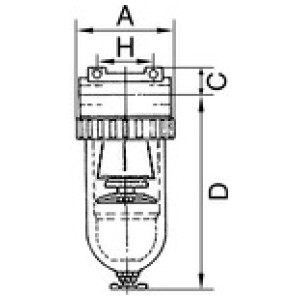

| A [mm] | 133.0 |
| C [mm] | 36.0 |
| D [mm] | 206.0 |
| H [mm] | 134.0 |
| Serija | Standard |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
