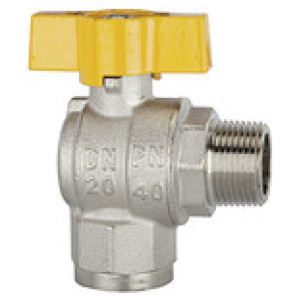

Pravokotni krogelni ventil, nikljana medenina, IT/ET, R/Rp 3/4
SKU: 103314RIE
EAN: 4047322075862
Rectangular ball valve, nickel-plated brass, IT/ET, Operating temp. -15°C to 100°C/60°C gas, R/Rp 3/4, PN max. 40 bar/ 5 bar gas
Čas dobave: Predvidoma 3 - 5 dni
46,62 €

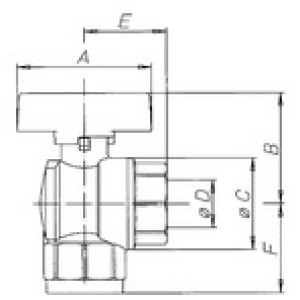

| Šifra | Navoj | DN | F [mm] | C Ø [mm] | E [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103314RIE | R/Rp 3/4 | 20 | 38.0 | 38.9 | 43.0 | 46.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,62 € |  | |
| 103313RIE | R/Rp 1/2 | 15 | 33.0 | 31.0 | 37.0 | 37.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,82 € | | |
| 103315RIE | R/Rp 1 | 25 | 46.0 | 48.0 | 51.0 | 50.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,10 € | |
Opis
Rectangular ball valve, nickel-plated brass, IT/ET, Operating temp. -15°C to 100°C/60°C gas, R/Rp 3/4, PN max. 40 bar/ 5 bar gas
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR |
| Delovni tlak | max. 5 bar (MOP 5) gas, max. 40 bar liquids |
| Delovna temperatura | -15 °C to 60 °C for gas, -15 °C to 100 °C for liquids |
| DVGW odobritev | DIN EN 331:2013-05 |
| Material navojev | Brass with a bare metal surface |
| Ročica - metuljček | Aluminium, painted yellow |
| Notranji deli | Nickel-plated brass |
| Aplikacije | Gas, compressed air, water, oil |
| Navoj | R/Rp 3/4 |
| DN | 20 |
| Standardni navoj | R or RP thread acc. to ISO 7-1 |
| A [mm] | 56.0 |
| B [mm] | 46.0 |
| F [mm] | 38.0 |
| E [mm] | 43.0 |
| C Ø [mm] | 38.9 |
