Predfilter»FUTURA« Kov. pos.0.3 µm, Vel.2, G 3/8, Avt.
SKU: 156568RIE
EAN: 4047322627603

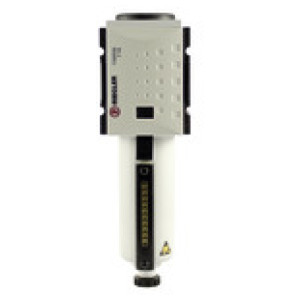

Pre-filter »FUTURA« with metal container and viewing tube, 0.3 µm, Size 2, G 3/8, 1.5-16 bar, Temp. -10°C to 50°C, Fully-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Opis
Pre-filter »FUTURA« with metal container and viewing tube, 0.3 µm, Size 2, G 3/8, 1.5-16 bar, Temp. -10°C to 50°C, Fully-automatic
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 16 |
Velikost | 2 |
Min. vhodni tlak [bar] | 1.5 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Element filtra | Impregnated paper |
Rang filtra [µm] | 0.3 |
Pretok [l/min] | 500 |
Posoda | Metal container with viewing tube |

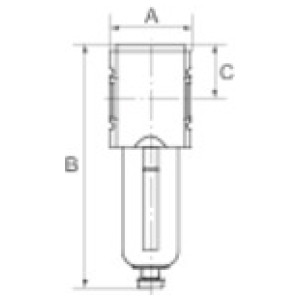

A [mm] | 63.0 |
B [mm] | 214.8 |
C [mm] | 47.8 |
Serija | FUTURA |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.02 bar |
Odtok kondenzata | Fully-automatic |
