* slike so simbolične
Predfilter »FUTURA-mali« z PC zbir. 0.3 µm, Vel. 0, G 1/4
SKU: 142445RIE
EAN: 4047322556705

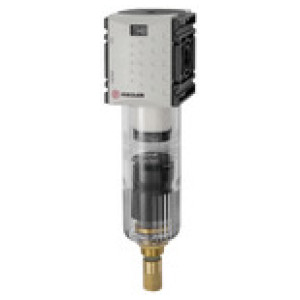

Pre-filter »FUTURA-mini« with PC container, 0.3 µm, Size 0, G 1/4, PE 1.5 - 12 bar, Temp. -10 °C to 50 °C, Fully-automatic (NC)
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Predfilter »FUTURA-mali« z PC zbir. 0.3 µm, Vel. 0, G 1/4
Element filtra: Impregnated paper
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 1/4
Odtok kondenzata: Fully-automatic (NC)
Ohišje: PA66 GF60
Posoda: Polycarbonate container
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
B [mm]: 170.0
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 1/4
Odtok kondenzata: Fully-automatic (NC)
Ohišje: PA66 GF60
Posoda: Polycarbonate container
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
B [mm]: 170.0
| Šifra | Odtok kondenzata | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 142445RIE | Fully-automatic (NC) | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 142444RIE | Fully-automatic | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 142443RIE | Semi-automatic | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pre-filter »FUTURA-mini« with PC container, 0.3 µm, Size 0, G 1/4, PE 1.5 - 12 bar, Temp. -10 °C to 50 °C, Fully-automatic (NC)
Pre-filters in modern design for compliance with strict compressed air purity requirements.
Pre-filters are used to separate solid impurities up to 0.3 µm from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Element filtra | Impregnated paper |
| Rang filtra [µm] | 0.3 |
| Pretok [l/min] | 140 |
| Posoda | Polycarbonate container |

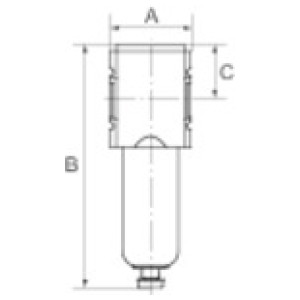

| A [mm] | 43.0 |
| B [mm] | 170.0 |
| C [mm] | 27.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.02 bar |
| Tesnilo | NBR |
| Odtok kondenzata | Fully-automatic (NC) |
