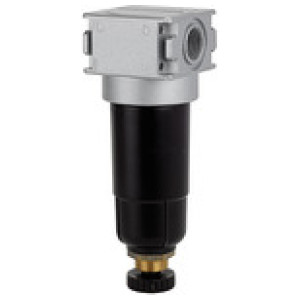

Predfilter »multifix-mali«Kov. pos.0.3 µmVel. 0 G 1/4
SKU: 100371RIE
EAN: 4047322132282
Pre-filter »multifix-mini« with metal container, 0.3 µm, Size 0, G 1/4, Input pressure max. 16 bar, Med. / ambient temp. max. 60°C
For filtering out solid impurities larger than 0.3 µm.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Predfilter »multifix-mali«Kov. pos.0.3 µmVel. 0 G 1/4
Element filtra: Paper-POM
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix-mini
Učinkovitost [%]: 99.999
D [mm]: 125.8
B [mm]: 138.1
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix-mini
Učinkovitost [%]: 99.999
D [mm]: 125.8
B [mm]: 138.1
| Šifra | Navoj | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 100370RIE | G 1/8 | 102.5 | 111.6 | 130 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100371RIE | G 1/4 | 125.8 | 138.1 | 160 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pre-filter »multifix-mini« with metal container, 0.3 µm, Size 0, G 1/4, Input pressure max. 16 bar, Med. / ambient temp. max. 60°C
For filtering out solid impurities larger than 0.3 µm.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Tesnilo | NBR |
| Element filtra | Paper-POM |
| Rang filtra [µm] | 0.3 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 160 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Posoda | Metal container |

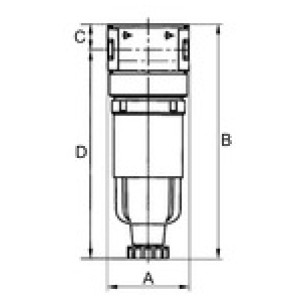

| A [mm] | 40.0 |
| B [mm] | 138.1 |
| C [mm] | 12.3 |
| D [mm] | 125.8 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.02 bar |
| Odtok kondenzata | Semi-automatic |
| Učinkovitost [%] | 99.999 |
