* slike so simbolične

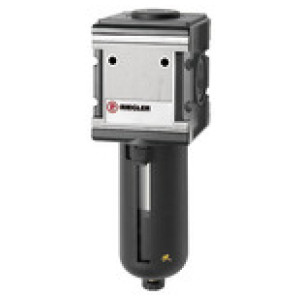

Predfilter »multifix« PC zbir.Zašč. kletkaVel. 4 G 3/4
SKU: 133115RIE
EAN: 4047322476041
Pre-filter »multifix« with PC container and protective cage, 0.3 µm, Size 4, G 3/4, Input pressure max. 16 bar, Temp. max. 60 °C
For filtering out solid impurities larger than 0.3 µm.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Predfilter »multifix« PC zbir.Zašč. kletkaVel. 4 G 3/4
Element filtra: Paper-POM
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 3/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
Serija: multifix
Učinkovitost [%]: 99.999
D [mm]: 190.0
B [mm]: 248.0
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.02 bar
Navoj: G 3/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
Serija: multifix
Učinkovitost [%]: 99.999
D [mm]: 190.0
B [mm]: 248.0
| Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133115RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 58.0 | 85.0 | 190.0 | 248.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100529RIE | G 1/4 | Die-cast zinc | 1 | 6 | 27.0 | 47.8 | 125.1 | 152.1 | 160 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133116RIE | G 1 | Die-cast aluminium | 4 | 25 | 58.0 | 85.0 | 190.0 | 248.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100530RIE | G 1/2 | Die-cast zinc | 3 | 15 | 38.5 | 68.8 | 147.3 | 185.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pre-filter »multifix« with PC container and protective cage, 0.3 µm, Size 4, G 3/4, Input pressure max. 16 bar, Temp. max. 60 °C
For filtering out solid impurities larger than 0.3 µm.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Tesnilo | NBR |
| Element filtra | Paper-POM |
| Rang filtra [µm] | 0.3 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 2000 |
| DN | 20 |
| Ohišje | Die-cast aluminium |
| Posoda | Polycarbonate container with protective cage |

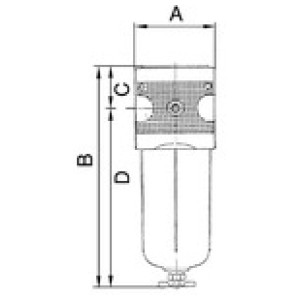

| A [mm] | 85.0 |
| B [mm] | 248.0 |
| C [mm] | 58.0 |
| D [mm] | 190.0 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.02 bar |
| Odtok kondenzata | Semi-automatic |
| Učinkovitost [%] | 99.999 |
