Prekl. ventil (3/2-smerni) »multifix«230 V ACVel.4,G 3/4

SKU: 133136RIE
EAN: 4047322476256

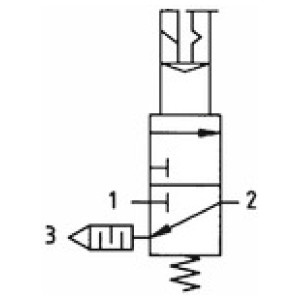

Switch valve (3/2-way valve) »multifix«, 230 V AC, 50 Hz, Size 4, G 3/4, Input pressure 2 - 16 bar, Med. / ambient temp. max. 60°C

Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.

3/2-way type including silencer.

When they are switched off, the system is relieved at the same time.

Čas dobave 3 - 5 dni
308,93 €
ali od 10,51 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,51 € x 36 mesecev
  • 15,10 € x 24 mesecev
  • 28,91 € x 12 mesecev
  • 56,56 € x 6 mesecev
  • 111,87 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Odzračevalni vtič Ohišje Velikost Max. vhodni tlak [bar] E [mm] C [mm] D [mm] A [mm] B [mm] Solenoid Pretok [l/min] Zaloga Cena Nakup Natisni
133140RIE G 1 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 230 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
133142RIE G 1 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 24 V DC 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
133135RIE G 3/4 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 24 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
100617RIE G 1/4 G 1/4 Die-cast zinc 1 10 17.5 43.7 26.0 47.8 138.7 24 V AC, 50 Hz 1150
Čas dobave 3 - 5 dni
159,05 € Natisni
133137RIE G 3/4 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 110 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
100622RIE G 1/2 G 1/4 Die-cast zinc 3 10 44.1 56.2 33.5 68.8 185.0 230 V AC, 50 Hz 3150
Čas dobave 3 - 5 dni
195,08 € Natisni
100621RIE G 1/2 G 1/4 Die-cast zinc 3 10 44.1 56.2 33.5 68.8 185.0 24 V AC, 50 Hz / 12 V DC 3150
Čas dobave 3 - 5 dni
195,08 € Natisni
133138RIE G 3/4 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 24 V DC 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
133136RIE G 3/4 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 230 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
100623RIE G 1/2 G 1/4 Die-cast zinc 3 10 44.1 56.2 33.5 68.8 185.0 110 V AC, 50 Hz 3150
Čas dobave 3 - 5 dni
195,08 € Natisni
100624RIE G 1/2 G 1/4 Die-cast zinc 3 10 44.1 56.2 33.5 68.8 185.0 24 V DC 3150
Čas dobave 3 - 5 dni
195,08 € Natisni
100618RIE G 1/4 G 1/4 Die-cast zinc 1 10 17.5 43.7 26.0 47.8 138.7 230 V AC, 50 Hz 1150
Čas dobave 3 - 5 dni
159,05 € Natisni
133141RIE G 1 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 110 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni
100620RIE G 1/4 G 1/4 Die-cast zinc 1 10 17.5 43.7 26.0 47.8 138.7 24 V DC 1150
Čas dobave 3 - 5 dni
159,05 € Natisni
100619RIE G 1/4 G 1/4 Die-cast zinc 1 10 17.5 43.7 26.0 47.8 138.7 110 V AC, 50 Hz 1150
Čas dobave 3 - 5 dni
159,05 € Natisni
133139RIE G 1 G 1/2 Die-cast aluminium 4 16 35.0 53.0 66.0 85.0 204.0 24 V AC, 50 Hz 12500
Čas dobave 3 - 5 dni
308,93 € Natisni

Opis

Switch valve (3/2-way valve) »multifix«, 230 V AC, 50 Hz, Size 4, G 3/4, Input pressure 2 - 16 bar, Med. / ambient temp. max. 60°C

Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.

3/2-way type including silencer.

When they are switched off, the system is relieved at the same time.

Tehnični podatki in specifikacije

Navoj G 3/4
Max. vhodni tlak [bar] 16
Velikost 4
Min. vhodni tlak [bar] 2
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Pretok [l/min] 12500
Solenoid 230 V AC, 50 Hz
Ohišje Die-cast aluminium
Odzračevalni vtič G 1/2

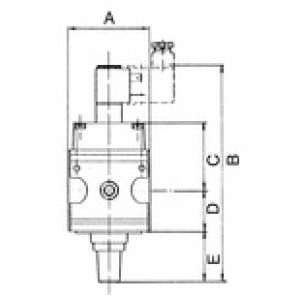

A [mm] 85.0
B [mm] 204.0
C [mm] 53.0
D [mm] 66.0
E [mm] 35.0
Serija multifix
Merjenje pretoka At P1 = 6 bar and pressure drop Δp = 1 bar
Električni priključek Device plug PG 9, type B, EN 175301-803
IP zaščita IP65 (P 54) acc. to DIN 40050
Delovni cikel [%] 100
