* slike so simbolične

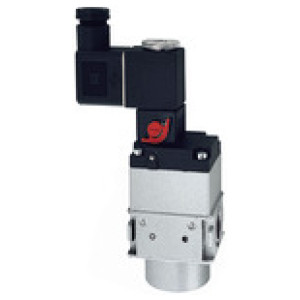

Prekl. ventil (3/2-smerni) »multifix-mali«230 V ACG 1/4
SKU: 100406RIE
EAN: 4047322165143

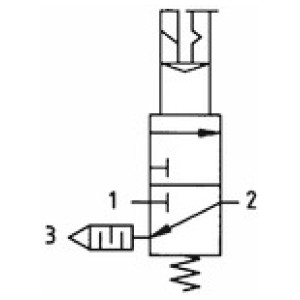

Switch valve (3/2-way valve) »multifix-mini«, 230 V AC, 50 Hz, G 1/4, Input pressure 2 - 10 bar, Medium / ambient temp. max. 60 °C
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is relieved at the same time.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Prekl. ventil (3/2-smerni) »multifix-mali«230 V ACG 1/4
Električni priključek: Device plug PG 9, type B, EN 175301-803
IP zaščita: IP65 (P 54) acc. to DIN 40050
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp= 1 bar
Navoj: G 1/4
Odzračevalni vtič: G 1/4
Ohišje: Die-cast zinc
Serija: multifix-mini
Solenoid: 230 V AC, 50 Hz
IP zaščita: IP65 (P 54) acc. to DIN 40050
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp= 1 bar
Navoj: G 1/4
Odzračevalni vtič: G 1/4
Ohišje: Die-cast zinc
Serija: multifix-mini
Solenoid: 230 V AC, 50 Hz
| Šifra | Solenoid | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100408RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100407RIE | 110 V AC, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100406RIE | 230 V AC, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Switch valve (3/2-way valve) »multifix-mini«, 230 V AC, 50 Hz, G 1/4, Input pressure 2 - 10 bar, Medium / ambient temp. max. 60 °C
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is relieved at the same time.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. vhodni tlak [bar] | 2 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 2000 |
| Solenoid | 230 V AC, 50 Hz |
| Ohišje | Die-cast zinc |
| Odzračevalni vtič | G 1/4 |

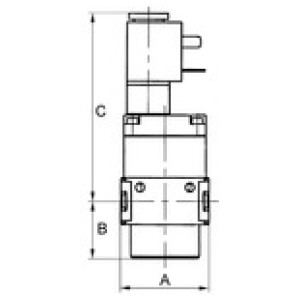

| A [mm] | 45.0 |
| B [mm] | 29.0 |
| C [mm] | 96.0 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp= 1 bar |
| Električni priključek | Device plug PG 9, type B, EN 175301-803 |
| IP zaščita | IP65 (P 54) acc. to DIN 40050 |
| Delovni cikel [%] | 100 |
