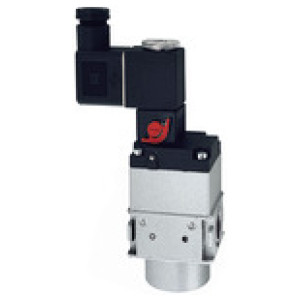

Prekl. ventil (3/2-smerni) »multifix-mali«24V DCG 1/4
SKU: 100408RIE
EAN: 4047322165167
Switch valve (3/2-way valve) »multifix-mini«, 24 V DC, G 1/4, Input pressure 2 - 10 bar, Medium / ambient temp. max. 60 °C
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.

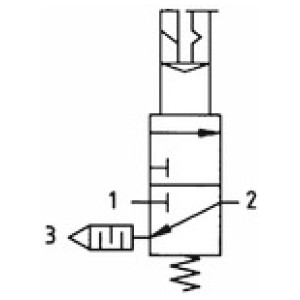

3/2-way type including silencer.
When they are switched off, the system is relieved at the same time.
Obrestno financiranje
- 14,41 € x 12 mesecev
- 28,19 € x 6 mesecev
- 55,75 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Solenoid | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100408RIE | 24 V DC | Čas dobave 3 - 5 dni | 153,78 € |  | |
| 100407RIE | 110 V AC, 50 Hz | Čas dobave 3 - 5 dni | 153,78 € | | |
| 100406RIE | 230 V AC, 50 Hz | Čas dobave 3 - 5 dni | 153,78 € | |
Opis
Switch valve (3/2-way valve) »multifix-mini«, 24 V DC, G 1/4, Input pressure 2 - 10 bar, Medium / ambient temp. max. 60 °C
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is relieved at the same time.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. vhodni tlak [bar] | 2 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 2000 |
| Solenoid | 24 V DC |
| Ohišje | Die-cast zinc |
| Odzračevalni vtič | G 1/4 |
| A [mm] | 45.0 |
| B [mm] | 29.0 |
| C [mm] | 96.0 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp= 1 bar |
| Električni priključek | Device plug PG 9, type B, EN 175301-803 |
| IP zaščita | IP65 (P 54) acc. to DIN 40050 |
| Delovni cikel [%] | 100 |
