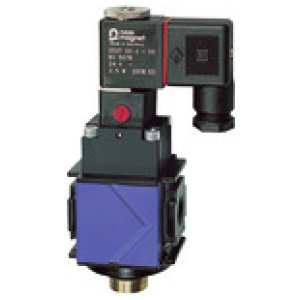

Prekl. ventil (3/2-smerni) »variobloc«24V DCVel.2,G 1/2
SKU: 100734RIE
EAN: 4047322212649

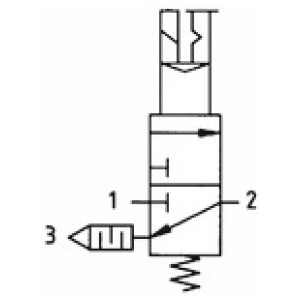

Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 1/2, Working pressure 3 - 10 bar
"For pressurising and relieving pneumatic systems. 3/2-way type including silencer.
Ideal as the main ""on"" valve for service units.
The pressure in the line is exhausted when the valve is switched off.
"Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Prekl. ventil (3/2-smerni) »variobloc«24V DCVel.2,G 1/2
Električni priključek: Device plug PG 9, type B, EN 175301-803
IP zaščita: IP65 acc. to DIN 40050
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/2
Serija: variobloc
Operativna napetost: 24 V DC

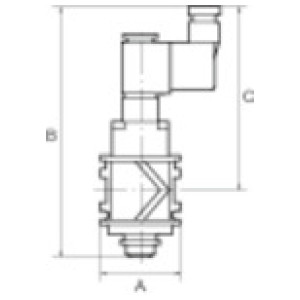

C [mm]: 113.0
B [mm]: 157.0
IP zaščita: IP65 acc. to DIN 40050
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/2
Serija: variobloc
Operativna napetost: 24 V DC
C [mm]: 113.0
B [mm]: 157.0
| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100732RIE | G 1/4 | 1 | 48.0 | 108.0 | 147.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100733RIE | G 3/8 | 1 | 48.0 | 108.0 | 147.0 | 2600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100736RIE | G 1 | 2 | 124.0 | 113.0 | 157.0 | 3800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100735RIE | G 3/4 | 2 | 70.0 | 113.0 | 157.0 | 3800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100734RIE | G 1/2 | 2 | 70.0 | 113.0 | 157.0 | 3300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 1/2, Working pressure 3 - 10 bar
"For pressurising and relieving pneumatic systems. 3/2-way type including silencer.
Ideal as the main ""on"" valve for service units.
The pressure in the line is exhausted when the valve is switched off.
"Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. delovni tlak [bar] | 3 |
| Max. delovni tlak [bar] | 10 |
| Velikost | 2 |
| Pretok [l/min] | 3300 |
| A [mm] | 70.0 |
| B [mm] | 157.0 |
| C [mm] | 113.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Električni priključek | Device plug PG 9, type B, EN 175301-803 |
| IP zaščita | IP65 acc. to DIN 40050 |
| Operativna napetost | 24 V DC |
