* slike so simbolične
Prenosni krogelni ventil za vodo, Z ročico, ročni, IT/IT, Rp 3/8
SKU: 103407RIE
EAN: 4047322401104
Potable water ball valve, Manual lever, IT/IT, Brass chrome plated, Operating temp. -20°C to 150°C, Rp 3/8, DN 10, PN max. 50 bar
Brass ball valve with free flow, DVGW approved. This valve complies with the European standard EN 13828 and the working paper DVGW W 570, and is therefore approved for use with drinking water. The special ball technology prevents bacteria from forming inside the valve if it is not in use for a long period of time (i.e. the valve is absolutely safe for drinking water).

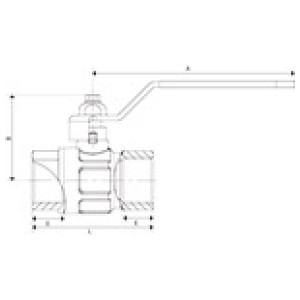

Šifra | Navoj | DN | E [mm] | a/f [mm] | PN [bar] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
103408RIE | Rp 1/2 | 15 | 15.0 | 25 | 50 | 50.3 | 61.0 | 92.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103410RIE | Rp 1 | 25 | 19.1 | 38 | 40 | 60.3 | 85.0 | 113.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103406RIE | Rp 1/4 | 8 | 11.0 | 18 | 50 | 41.8 | 49.5 | 85.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,25 € | ||
103412RIE | Rp 1 1/2 | 40 | 21.4 | 54 | 30 | 91.8 | 109.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 60,56 € | ||
103413RIE | Rp 2 | 50 | 25.7 | 66 | 25 | 98.8 | 130.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103409RIE | Rp 3/4 | 20 | 16.3 | 31 | 40 | 56.3 | 68.0 | 113.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103411RIE | Rp 1 1/4 | 32 | 21.4 | 47 | 30 | 76.3 | 99.5 | 138.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103407RIE | Rp 3/8 | 10 | 11.4 | 21 | 50 | 41.8 | 52.4 | 85.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |
Opis
Potable water ball valve, Manual lever, IT/IT, Brass chrome plated, Operating temp. -20°C to 150°C, Rp 3/8, DN 10, PN max. 50 bar
Brass ball valve with free flow, DVGW approved. This valve complies with the European standard EN 13828 and the working paper DVGW W 570, and is therefore approved for use with drinking water. The special ball technology prevents bacteria from forming inside the valve if it is not in use for a long period of time (i.e. the valve is absolutely safe for drinking water).
Tehnični podatki in specifikacije
Ohišje | Chrome-plated brass |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Krogla | Chrome-plated brass |
Krogelno tesnilo | PTFE |
Stebelno tesnilo | NBR / FKM |
DVGW odobritev | DIN EN 13828:2003-12, DVGW W 570 |
Ročica | Steel with plastic coating |
Aplikacije | Potable water, water |
Navoj | Rp 3/8 |
DN | 10 |
Standardni navoj | Thread acc. to ISO 7-1 |
L [mm] | 52.4 |
A [mm] | 85.5 |
B [mm] | 41.8 |
E [mm] | 11.4 |
a/f [mm] | 21 |
PN [bar] | 50 |
