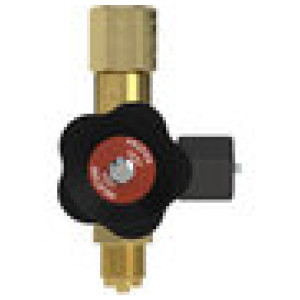

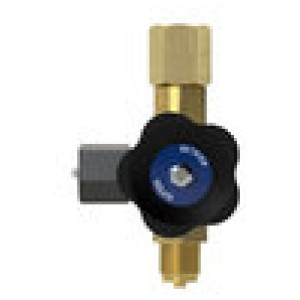

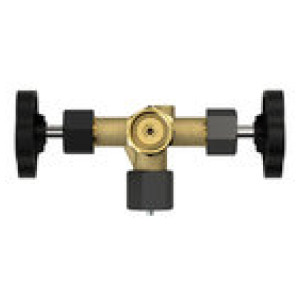

Press.gauge double block.valve, taps-tension sleeve G1/2, brass
SKU: 140261RIE
EAN: 9090991
Pressure gauge double blocking valve, taps-tension sleeve G 1/2, brass, DIN 16272, test connection M20x1.5, PN 250 bar, form A
Used as shut-off or reducing elements for pressure gauges when measuring liquids, gases or steam.
Ni na zalogi
Povpraševanje
Press.gauge double block.valve, taps-tension sleeve G1/2, brass
Kolo: Plastic
Material: Brass
Matica: Steel
Navoj: G 1/2
Ohišje: Brass
Različica: male / female/female
Stožec ventila: Stainless steel
Material: Brass
Matica: Steel
Navoj: G 1/2
Ohišje: Brass
Različica: male / female/female
Stožec ventila: Stainless steel
| Šifra | Min. delovna temperatura [°C] | Material | Matica | Ohišje | Max. delovna temperatura [°C] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 201996RIE | -10 | steel | Steel | Steel | 120 | 400 | Ni na zalogi | ? | Povpraševanje |  |
| 169712RIE | -20 | Stainless steel 1.4571 | Stainless steel | Stainless steel | 200 | 400 | Ni na zalogi | ? | Povpraševanje | |
| 140261RIE | -10 | Brass | Steel | Brass | 120 | 250 | Ni na zalogi | ? | Povpraševanje | |
Opis
Pressure gauge double blocking valve, taps-tension sleeve G 1/2, brass, DIN 16272, test connection M20x1.5, PN 250 bar, form A
Used as shut-off or reducing elements for pressure gauges when measuring liquids, gases or steam.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 120 |
| PN [bar] | 250 |
| a/f [mm] | 27 |
| Tesnilo | PTFE |
| Kolo | Plastic |
| Ohišje | Brass |
| Stožec ventila | Stainless steel |
| Matica | Steel |
| Različica | male / female/female |
| Material | Brass |
